In the hyper-competitive world of electronics manufacturing, the transition from a laboratory prototype to a mass-market product is fraught with logistical and financial hurdles. As modern consumer electronics trend toward miniaturization—exemplified by wearables and IoT sensors—the physical dimensions of individual Printed Circuit Boards (PCBs) have shrunk beyond the handling capabilities of standard Surface Mount Technology (SMT) assembly lines.

Enter PCB Panelization. This is not merely a mechanical convenience; it is a sophisticated manufacturing strategy. By grouping multiple smaller boards into a single, standardized “panel” or “array,” engineers can harmonize the requirements of high-precision design with the realities of high-speed industrial automation. This guide provides an exhaustive technical deep-dive into panelization, serving as a definitive resource for professional engineers, researchers, and students aiming to optimize production efficiency and structural integrity.

1.What is PCB Panelization?

At its core, PCB Panelization is the practice of arranging multiple PCB units onto a larger substrate (the panel) to facilitate simultaneous fabrication, assembly, and testing. A typical industrial panel might range from 18 x 12 inches to 24 x 18 inches, depending on the manufacturer’s equipment.

In a professional SMT line, the panel acts as a “carrier.” Machines like solder paste printers and pick-and-place robots are calibrated for specific minimum frame sizes. If a board is too small (e.g., 20mm x 20mm), the conveyor belts cannot grip it, and the high-speed movement would cause it to vibrate or flip. Panelization solves this by providing a stable, rigid platform. The process concludes with depanelization, where the individual units are extracted from the “mother” panel using mechanical or thermal methods.

2.Advantages of Using Panelized PCB

The decision to panelize is driven by several critical factors that impact the entire product lifecycle:

2.1 Optimization of Throughput and Efficiency

Automated assembly lines are defined by their “tact time”—the rate at which a unit is completed. Setting up a machine for one small board is inefficient. Panelization allows a single stencil to apply solder paste to 20 or 50 boards at once, and a pick-and-place head can populate the entire array in one continuous operation. This drastically reduces the overhead time associated with loading and unloading boards.

2.2 Structural Rigidity and Thermal Stability

Small, thin PCBs (under 1.0mm thickness) are prone to warping under the intense heat of a reflow oven. A well-designed panel includes “waste” areas or rails that provide mechanical strength, ensuring the boards remain flat during the soldering process. This prevents “tombstoning” of components and ensures high-quality solder joints.

2.3 Drastic Cost Reduction

In PCB fabrication, you pay for the area of the laminate used. If your design is an irregular L-shape, fabricating it individually leads to significant material waste. By “nesting” these shapes within a panel, manufacturers can achieve near-100% material utilization, lowering the unit cost significantly.

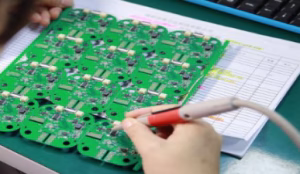

2.4 Simplified Testing and Quality Control

Technicians can perform Automated Optical Inspection (AOI) and In-Circuit Testing (ICT) on the entire panel before it is broken down. This batch-testing approach makes it easier to track manufacturing defects across a specific production run.

3.Different Combinations for PCB Panelization

The geometry and variety of the boards determine the layout strategy:

3.1 Same-Board Array (Uniform Panelization)

This is the industry standard for high-volume production. Multiple copies of the same design are laid out in a grid. This is the simplest to program for CNC machines and pick-and-place robots.

3.2 Different-Board Array (Mixed/Heterogeneous Panelization)

In complex systems (like a smartphone), you might have a main logic board, a charging sub-board, and a camera module board. By panelizing these different designs together, you ensure that for every “set” produced, you have exactly one of each component required for the final assembly. This synchronizes inventory management.

3.3 Rotation and Nesting

To save space, boards can be rotated 90 or 180 degrees. For example, “L-shaped” boards can be interlocked (nested) to minimize the gaps between them, further reducing material waste.

4.Techniques for Making a PCB Panel

Choosing the right connection method is vital for the mechanical success of the panel.

4.1 V-Scoring (V-Cut)

V-scoring involves cutting a shallow, V-shaped groove into both the top and bottom of the PCB substrate, leaving a thin “web” of material in the middle.

• Pros:Very space-efficient (no gap required between boards); provides a straight, clean break.
• Cons:Only works for straight lines that go across the entire panel; cannot be used for boards with components too close to the edge.

4.2 Tab Routing (with Mouse Bites)

In this method, the boards are separated by a routed path, held together by small “tabs” of material. To make separation easier, these tabs often feature “mouse bites”—a series of small perforated holes.

• Pros:Perfect for irregular, circular, or complex shapes.
• Cons:Leaves rough edges (the remains of the mouse bites) that may require sanding; uses more board area because of the routing bit width (usually 2.0mm to 3.0mm).

4.3 Solid Tabs

For heavy components or boards that require extreme rigidity, solid tabs without perforations are used. These must be cut with a specialized router or saw, as they cannot be snapped by hand.

5.Designing for Panelization: Key Considerations

Effective panelization requires foresight during the CAD design phase. Engineers should follow these DFM (Design for Manufacturing) rules:

• The 5mm Rule:Keep all copper traces, pads, and components at least 5mm away from the panel’s outer edge and 0.5mm to 2mm away from V-score lines. This prevents mechanical stress from cracking ceramic capacitors during separation.
• Fiducial Marks:Every panel must have at least three global fiducial marks (1.0mm diameter copper circles) on the rails. These help the assembly robots calibrate their X-Y coordinates relative to the panel.
• Tooling Holes:Non-plated holes (usually 3.05mm) should be placed in the corners of the panel rails. These are used to “pin” the board into testing fixtures or assembly pallets.
• Edge Clearance for Connectors:If a USB port or headphone jack overhangs the board edge, V-scoring is impossible on that side. You must use tab-routing with a wide enough gap to accommodate the component’s “nose.”

6.Tools for PCB Panelization

In PCB manufacturing and assembly, panelization is a crucial step that makes production more effective and economical. Software tools, panelization equipment, and specialized tooling are some of the items available to help with the panelization process.

6.1 Software for PCB Design

Because it enables the layout and design of each PCB to be optimized for panelization, PCB design software is an essential tool for panelization. With capabilities like panelization templates, array tools, and step-and-repeat functionalities, software programs like EasyEDA, Altium Designer, Eagle PCB, and KiCad enable the construction of panelized PCB designs.

6.2 Equipment for panelization

After the manufacturing process is finished, the individual PCBs are physically separated from the panel using panelization equipment. For this reason, equipment including punching, routing, and V-cut are frequently utilized. These instruments are made to make precise and clean cuts or perforations in the panel, making it simple to separate the various PCBs.

6.3 Expert Tools

Panelization is aided by specialized equipment including pick-and-place machines, stencil printers, and reflow ovens. By automating and streamlining the manufacturing and assembly process, these technologies can cut down on the time and effort needed for manual assembly.

6.4 Tools for Quality Control

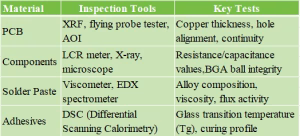

To guarantee the final product’s quality and dependability, quality control tools like testing apparatus, X-ray machines, and inspection cameras are employed. By using these tools, flaws or problems that can occur throughout the panelization process can be found and fixed before the finished product is sold.

7.How to Depanelize PCB Panels?

Depanelization is the most “dangerous” step for the finished electronics, as mechanical vibration can damage solder joints.

• Manual Snapping:Cheap but risky. Only suitable for low-complexity V-scored boards.
• Pizza Cutter (Circular Blade):A handheld or machine-mounted blade that follows the V-score. It reduces stress compared to manual snapping.

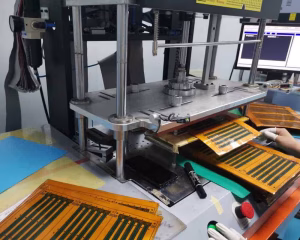

• Punching Die:A custom mold “punches” the board out of the panel. Fast and accurate, but the tooling cost is high—only viable for very high volumes.
• Depaneling Router:A CNC machine with a tiny bit that cuts the tabs. It provides the cleanest edges and zero mechanical stress on components.
• Laser Depaneling:The gold standard for flex-circuits and ultra-thin PCBs. It uses a CO2 or UV laser to vaporize the material, leaving no burrs and applying zero physical force.

8. Challenges and Solutions in Panelization

Panelization is not without its risks. For engineers and researchers, understanding these challenges is critical to preventing costly production failures.

8.1 Mechanical Stress and Micro-cracking

Challenge: During the depanelization of V-scored panels, the board undergoes significant bending stress. This “flexing” can lead to micro-cracks in brittle components like MLCCs (Multi-Layer Ceramic Capacitors) and large BGA (Ball Grid Array) packages. These cracks are often invisible to the naked eye but cause field failures weeks or months later.

Solution: *Component Orientation: Always orient sensitive components parallel to the V-cut line, not perpendicular.

Keep-out Zones: Implement a strict 3mm to 5mm “keep-out” zone near tabs or score lines.

Equipment Choice: Switch from manual snapping to automated “pizza cutters” or CNC routers which apply significantly less stress.

8.2 Thermal Warping and “Sagging”

Challenge: During reflow soldering, the panel reaches high temperatures, causing the FR-4 material to soften (approaching its Tg point). Large panels or panels with uneven copper distribution can warp or “sag” in the middle, leading to misaligned components or uneven solder thickness.

Solution: * Copper Balancing: Ensure that the copper density is balanced across the panel and on both sides (top/bottom) to prevent uneven expansion.

Breakaway Rails: Add internal support rails (dummy strips) to increase the Moment of Inertia of the panel.

Reflow Carriers: For ultra-thin boards, use a dedicated SMT carrier (pallet) made of synthetic stone or aluminum to hold the panel perfectly flat.

8.3 Dimensional Inaccuracy and Cumulative Tolerance

Challenge: As the number of boards in a panel increases, the tolerances of the fabrication and assembly machines can accumulate. A 0.05mm error on one board can become a 1mm error by the 20th board in the array.

Solution: * Local Fiducials: In addition to global fiducials on the rails, place “local” fiducials on each individual board (or near fine-pitch ICs) to allow the pick-and-place machine to re-calibrate for every unit.

High-Precision Fabrication: Specify tighter tolerances for the V-cut depth and routing paths during the design handover.

8.4 Handling of Overhanging Components

Challenge: Components like USB-C connectors, side-actuated switches, or audio jacks often extend past the board edge. These “overhangs” interfere with V-scoring and can be crushed during handling.

Solution: * Recessed Tabs: Use tab-routing and create a “recessed” area in the panel frame to accommodate the overhanging part.

Custom Tooling: Design custom assembly pallets that have “cut-outs” specifically for these protruding components.

8.5 Debris, Dust, and Ionic Contamination

Challenge: Mechanical routing and snapping create fiberglass dust and debris. If these particles settle on optical sensors or high-voltage circuits, they can cause malfunctions or short circuits.

Solution: * Vacuum Extraction: Use CNC routers equipped with high-efficiency vacuum systems.

Ionized Air Cleaning: Implement an ionized air blow-off station post-depanelization to remove static-charged dust particles from the board surface.

9.FAQs

10.Summary

PCB panelization is a bridge between the digital world of CAD design and the physical world of mass production. It is a discipline where mechanical engineering, material science, and electronics intersect. By understanding the trade-offs between V-scoring and tab-routing, and by meticulously applying DFM guidelines, engineers can ensure that their products are not only functional but also manufacturable at scale. As you move forward with your designs, remember that a well-panelized board is a hallmark of a professional, production-ready engineer.

In the relentless pursuit of smaller, faster, and more powerful electronic devices, engineers constantly push the boundaries of design and manufacturing. At the forefront of this innovation lies the High-Density Interconnect (HDI) Printed Circuit Board. HDI PCBs are a cornerstone of modern electronics, enabling incredible miniaturization without compromising performance. This comprehensive guide will delve into what defines an HDI PCB, its various types, key features, advantages, design considerations, manufacturing processes, and its pervasive applications across industries.

1. What Exactly is a High-Density Interconnect (HDI) PCB?

A High-Density Interconnect (HDI) PCB is a type of printed circuit board characterized by a higher wiring density per unit area than conventional PCBs. This is achieved through advanced manufacturing techniques that allow for finer lines and spaces, smaller capture pads, and the use of microvias, blind vias, and buried vias. Essentially, an HDI PCB packs more functionality into a smaller physical space, making it indispensable for today’s compact and sophisticated electronic devices.

The defining characteristic of HDI technology is the use of microvias—typically less than 150 microns in diameter. These tiny vias play a crucial role in increasing routing density. Unlike traditional through-hole vias that pass through all layers, microvias can be laser-drilled, allowing for more precise and space-efficient interconnections between layers.

2. Key Features Defining HDI PCBs

Several key features distinguish HDI PCBs from standard multi-layer boards:

• Microvias:These extremely small diameter vias (less than 6 mil or 0.15mm) are typically laser drilled . They conserve valuable board real estate by connecting only a few layers, unlike traditional mechanical drills that penetrate the entire board.
• Blind and Buried Vias:Blind vias connect an outer layer to one or more inner layers but do not pass through the entire board. Buried vias connect two or more inner layers and are not visible from the outer layers. Both significantly reduce the need for through-hole vias, freeing up space for more components and traces.
• Finer Lines and Spaces:HDI technology allows for trace widths and spacing as small as 2-3 mil (0.05-0.075mm), dramatically increasing the routing density.
• Higher Component Density:With reduced via sizes and finer lines, more components can be placed closer together on both sides of the board, leading to significant miniaturization.
• Improved Electrical Performance:Shorter signal paths, reduced parasitic capacitance and inductance, and better impedance control contribute to enhanced signal integrity and reduced noise, crucial for high-frequency applications.
• Reduced Board Size and Weight:The ability to pack more functionality into a smaller area directly translates to lighter and more compact final products.

3. Advantages and Considerations of HDI PCBs

High-Density Interconnect PCBs offer a myriad of advantages that drive their widespread adoption, alongside some inherent complexities and potential disadvantages.

3.1 Advantages of HDI PCBs

• Miniaturization:The primary benefit is the significant reduction in board size and weight, allowing for smaller, lighter, and more portable electronic devices.
• Enhanced Electrical Performance:Shorter trace lengths, improved signal integrity, and reduced electromagnetic interference (EMI) are critical for high-speed and high-frequency applications.
• Increased Function ality:More components and routing paths can be accommodated within the same or even smaller footprint, leading to more powerful and feature-rich products.
• Improved Reliability:Smaller vias and finer lines can reduce the chances of open circuits or short circuits, and the controlled impedance enhances overall system reliability.
• Thermal Management:HDI structures can sometimes offer better thermal pathways due to the shorter distances and optimized stack-ups, although complex designs might require dedicated thermal solutions.

3.2 Considerations (Potential Disadvantages) of HDI PCBs

• Higher Manufacturing Cost:The specialized equipment (e.g., laser drills), advanced materials, and more complex fabrication processes make HDI PCBs more expensive than conventional PCBs.
• Increased Design Complexity:Designing HDI boards requires sophisticated CAD tools and highly skilled engineers due to the intricate layer stack-ups, via structures, and tight tolerances.
• Longer Fabrication Time:The multi-step laser drilling, plating, and sequential lamination processes are more time-consuming compared to standard PCB manufacturing.
• Limited Repairability:Due to the fine pitch components and buried/blind vias, repairing or reworking HDI boards can be challenging and sometimes impossible.

4. Exploring the Different Types and Structures of HDI PCBs

HDI PCBs are categorized into various types based on their stack-up and the complexity of their microvia structures. These types are often denoted by a numerical system (Type I through Type VI), indicating the number of sequential lamination steps and the arrangement of microvias.

4.1 Understanding HDI Structures

• Sequential Lamination:The key to HDI PCB construction is sequential lamination, where layers are added and processed one at a time, allowing for the creation of microvias that only span specific layers.
• Microvia Placement:Microvias can be created on the outer layers (connected to pads), or stacked/staggered within the inner layers.

4.2 Comparison of HDI PCB Types

The “N” in the structures (e.g., 1+N+1) typically refers to the number of core layers, while “1” or “i” denotes sequential build-up layers with microvias.

5. HDI PCB Design Considerations

Designing an HDI PCB is a meticulous process that requires careful attention to various factors to maximize performance and manufacturability.

• Stack-up Optimization:A well-planned layer stack-up is crucial. It dictates signal integrity, power distribution, thermal performance, and overall manufacturability. Engineers must decide on the number of layers, material types (dielectric constant, loss tangent), and the arrangement of ground and power planes.
• Microvia and Via-in-Pad Technology:Utilizing microvias and placing vias directly in component pads (via-in-pad) significantly reduces board size and improves routing density. This requires careful consideration of laser drilling capabilities and filling techniques ( e.g., copper fill).
• Trace Width and Spacing:Designing with the finest possible trace widths and spaces (e.g., 2-3 mil) to achieve maximum routing density, while respecting manufacturing capabilities and impedance control requirements.
• Impedance Control:Maintaining consistent impedance for high-speed signals is paramount. This involves precise control over trace geometry, dielectric thickness, and material properties.
• Thermal Management: With higher component density, heat dissipation becomes a critical concern. Designers must incorporate thermal vias, optimized copper pours, and potentially specialized substrate materials to manage heat effectively.
• Material Selection:Choosing appropriate low-loss dielectric materials and copper foil types is essential for high-frequency performance and overall reliability.
• Design for Manufacturability (DFM):Early collaboration with the PCB manufacturer is vital to ensure the design adheres to their specific process capabilities and tolerances, preventing costly redesigns.

6. The Manufacturing Process of HDI PCBs

The manufacturing process for HDI PCBs is significantly more complex than conventional PCBs, primarily due to the sequential build-up and micro via creation.

• Core Material Preparation: Starting with a conventional core (double-sided or multi-layer) that may contain buried vias.
• Dielectric Layer Lamination:A thin layer of dielectric material (prepreg) is laminated onto the core.
• Laser Drilling:Microvias are created through the newly added dielectric layer using precise laser drilling technology (CO2 or UV lasers). This allows for very small hole sizes and high accuracy.
• Desmear and Electroless Copper Deposition:The drilled holes are chemically cleaned (desmeared) to remove resin residue, and a thin layer of electrol ess copper is deposited to make the hole walls conductive.
• Electrolytic Copper Plating:The microvias and surface traces are then electroplated with copper to build up the desired copper thickness. For stacked microvias , these vias are often filled with copper.
• Photolithography and Etching:Photoresist is applied, exposed to UV light through a mask, and developed to define the circuit patterns. Unwanted copper is then etched away.
• Repeat Sequential Lamination:Steps 2-6 are repeated for each additional sequential build-up layer until the desired stack-up is achieved. This forms the complex HDI structures.
• Outer Layer Processing:Once all inner layers are complete, the outer layers are processed similarly, including applying solder mask, silk screening, and surface finish (e.g., ENIG, HASL).
• Final Fabrication :The board undergoes routing (cutting into individual PCBs), electrical testing (E-test), and final inspection.

7. Applications of HDI PCBs: Powering Modern Electronics

HDI PCBs are the unsung heroes behind countless advanced electronic devices, enabling the compact, high-performance gadgets we rely on daily. Their ability to deliver high functionality in a small footprint makes them indispensable across diverse industries:

• Consumer Electronics:Smartphones, tablets, laptops, smartwatches, wearable devices, digital cameras, and gaming consoles all extensively utilize HDI technology for miniaturization and performance.
• Medical Devices:Compact and high-precision medical equipment such as pacemakers, hearing aids, diagnostic tools, and portable monitoring devices benefit from HDI’s small size and reliability.
• Automotive Industry:Advanced Driver-Assistance Systems (ADAS), infotainment systems, engine control units (ECUs), and GPS systems often incorporate HDI PCBs for their robustness and performance in demanding environments.
• Aerospace and Defense:Mission-critical avionics, satellite systems, radar equipment, and guidance systems require HDI PCBs for their high reliability, shock resistance, and ability to withstand extreme conditions while minimizing weight.
• Industrial Control Systems:Robotics, automation equipment, and specialized sensors leverage HDI PCBs for their robust performance and ability to integrate complex functionalities in constrained spaces.
• Telecommunications:Network infrastructure, base stations, and high-speed data transmission equipment use HDI to manage high-frequency signals and achieve dense connectivity.

8.FAQs

9.Summary

High-Density Interconnect (HDI) PCBs are a pivotal technology driving the evolution of modern electronics. Defined by their use of microvias, blind and buried vias, and finer trace geometries, they enable an unprecedented level of miniaturization and functionality. While offering significant advantages in space savings, enhanced electrical performance, and increased reliability, their manufacturing complexity and higher costs necessitate careful design and production planning. From basic Type I structures to advanced “Any Layer” designs, HDI PCBs are at the heart of compact, high-performance devices across consumer, medical, automotive , and aerospace sectors, continually pushing the boundaries of what’s possible in electronics.

To ensure quality throughout the PCB manufacturing workflow, producers routinely deploy a wide array of inspection and testing equipment—and this is a key point that buyers should never overlook. It is precisely for this reason that this article was crafted: to give you a comprehensive breakdown of Automated LED Optical Testing by examining it from nine distinct angles. If you’re in pursuit of dependable PCB manufacturing services, feel free to request a PCB quote to kick off your project.

As electronic components shrink and circuit densities increase, the complexity of PCBs makes traditional inspection methods obsolete. AOI provides a non-contact, automated approach to scrutinize every detail of a PCB, identifying a vast array of defects that would be nearly impossible for the human eye to consistently catch.

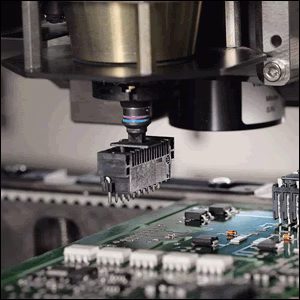

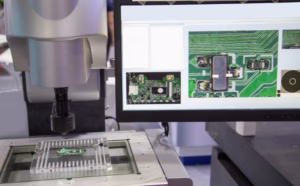

(The workers are using an AOI machine.)

1. What is Automated Optical Inspection (AOI)?

Automated Optical Inspection (AOI) is a machine-vision-based technique used primarily in the manufacturing of printed circuit boards (PCBs) to autonomously scan a board for catastrophic failures and quality defects. It employs sophisticated cameras, lighting systems, and powerful software algorithms to capture detailed images of the PCB and compare them against an approved “golden” board or the design Gerber files. This comparison allows the system to identify deviations that signify potential defects.

Essentially, an AOI system acts as an electronic “eye” that never tires, examining every solder joint, component placement, and trace with meticulous detail. Its primary goal is to ensure that the PCB assembly aligns perfectly with its design specifications and quality standards before moving to the next stage of production or final testing.

2.Why Are AOI Tests Popular

Printed circuit boards (PCBs) serve as a core component underpinning automated optical inspection (AOI) processes.

When placing orders for these boards, any identified errors must be rectified promptly—delays or oversights in this regard could lead to frustrating financial repercussions.

As previously noted, the growing sophistication of modern PCBs has rendered manual inspection methods entirely obsolete.

The industry now pivots toward automated soldering techniques paired with inspection protocols to verify PCB quality. In today’s competitive market landscape, there is a pressing demand for high-volume, premium-grade products that can be delivered to end-users swiftly, all while upholding rigorous quality control standards.

Indeed, automated inspection and testing stand as foundational pillars of an effective electronics testing strategy. By enabling the rapid detection of production defects, these systems play a critical role in accelerating time-to-market for electronic products.

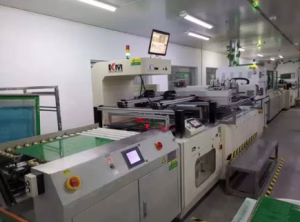

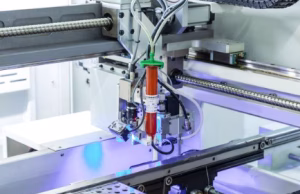

An automated vision system for PCB inspection after assembly.

3.How AOI Works

The operational efficiency of an AOI system hinges on three primary components working in harmony: image acquisition, image processing, and defect analysis.

3.1. Image Acquisition

The process begins with high-resolution cameras capturing multiple images of the PCB. Modern AOI systems often utilize an array of cameras, sometimes including both 2D and 3D capabilities, to capture different perspectives and depths. Specialized lighting, typically LED-based, is crucial here. Various illumination angles and colors are used to highlight specific features and defects, such as solder joint profiles or component markings, by generating contrast. Different lighting conditions can reveal distinct characteristics of the board, making even subtle flaws visible to the system.

3.2. Image Processing and Comparison

Once images are captured, the AOI software processes them rapidly. This involves digital image enhancement techniques to filter noise and sharpen features. The core of the AOI system’s intelligence lies in its ability to compare these acquired images against a set of predetermined criteria. There are generally two main comparison methods:

• Template Matching (Golden Board Comparison):The AOI system is programmed with images of a known-good board (the “golden board”). During inspection, it compares each new board’s image data pixel by pixel, or feature by feature, against this reference. Any significant deviation signals a potential defect.
• Feature-Based Algorithm (CAD Data Comparison):This method utilizes the PCB’s CAD data (Gerber files) to define the expected characteristics of components, traces, and solder joints. The AOI software analyzes features like pad size, component dimensions, and solder paste volume, checking if they fall within acceptable tolerance limits.

3.3. Defect Analysis and Reporting

When a discrepancy is detected, the AOI software flags it as a potential defect. Advanced algorithms classify the type of defect (e.g., missing component, solder bridge, incorrect polarity). The system then presents the flagged areas to an operator for verification. This manual review step is critical to differentiate between actual defects and “false calls” – instances where the AOI misidentifies a normal variation as a fault. Modern AOI systems are increasingly integrating Artificial Intelligence (AI) and Machine Learning (ML) to reduce false calls and improve the accuracy of defect classification, leading to more efficient verification processes.

4. Common Defects Detected by AOI

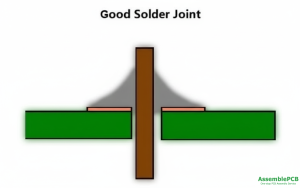

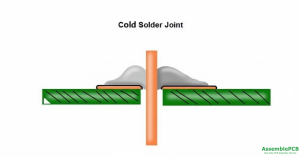

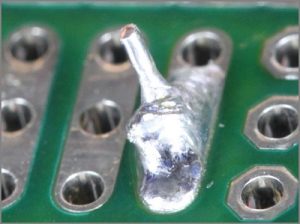

Cold solder joints on the PCB

AOI systems are adept at identifying a wide range of defects that can occur at various stages of PCB assembly. These include both visual and structural anomalies that impact functionality and reliability. Key defects detected include:

• Solder Joint Defects:

• • Insufficient or excessive solder paste.
  • Solder bridges (shorts between pads).
  • Open circuits (no solder connection).
  • Solder balls or splashes.
  • Lifted leads.
• Component Placement Defects:
  • Missing components.
  • Misaligned or shifted components.
  • Wrong components (e.g., incorrect value resistor ).
  • Incorrect component polarity (especially critical for diodes, ICs).
  • Bent or lifted pins.
• Pad and Trace Defects:
  • Scrat ches or damage to traces.
  • Contamination or foreign material.
  • Etching defects.
  • Non-wetting or de-wetting on pads.

This comprehensive detection capability ensures that potential issues are caught early, preventing more expensive repairs or scrap later in the production cycle.

5.The Advantages of AOI Test

Automated Optical Inspection (AOI) has become an indispensable part of PCB manufacturing, thanks to its multiple prominent advantages as follows. It is highly practical for examining PCBs to identify issues including short circuits, line spacing non-compliance, missing solder pads, line width deviations, impacts of high-power loads and frequencies, and excess copper on pads or lines—such inspections are generally carried out after the manufacturing and component assembly stages.

Automated Optical Inspection (AOI) has become an indispensable part of PCB manufacturing, thanks to its multiple prominent advantages as follows:

 Versatile Testing Approaches

AOI is mainly applied to post-assembly PCB inspection, where it can identify anomalies or defects like missing components effectively. Additionally, it is also capable of inspecting copper trace irregularities on PCBs right after the manufacturing process.

High Positional Precision

Positional precision is of great significance for optical inspection systems, as PCBs and their components are getting increasingly miniaturized. AOI cameras boast strong performance, which enables them to detect minimal deviations between the captured images and the standard templates—even for the most advanced PCBs.

 Programmable Illumination

The illumination system of AOI can be reprogrammed, and different light sources can even be adopted to provide cameras with the optimal view of the PCB surface.

printed circuit board with many electronic components.

 Production Cost Reduction

With its high inspection accuracy, AOI helps pinpoint and rectify tiny, imperceptible defects that might incur substantial costs if left unaddressed in the later stages of production.

6.AOI Test Detectable Defects

Automated inspection test systems are capable of identifying a diverse array of errors in printed circuit boards (PCBs). These systems employ various technical approaches to verify whether a PCB meets all predefined quality criteria, with key techniques including template matching, pattern matching, and statistical matching.

Specifically, template matching works by comparing scanned images of the target PCB against a “golden board” (a standard, defect-free PCB). Pattern matching, by contrast, analyzes and contrasts data stored in both flawless and defective systems to pinpoint discrepancies. Statistical matching, meanwhile, leverages statistical datasets to identify and address potential issues that may arise during PCB production.

In addition to these basic methods, advanced visual inspection technologies are also utilized to scan PCBs for manufacturing defects with higher precision.

Fault detection systems further utilize image-based analysis, comparing captured images of PCBs with ideal design diagrams to spot obvious defects efficiently.

• For instance, such systems can effectively detect welding defects, including solder bridges, solder short circuits, solder gaps, excessive solder, irregular solder mass, and open circuits. To mitigate these welding issues, solderability tests provide crucial insights that help enhance the quality of solder joints.
• Component-related defects are also addressed through automated inspection, such as missing components, incorrect component values, misaligned or improperly placed components, faulty parts, and lifted leads. Timely detection of these defects facilitates the prompt correction of errors in PCBs during the manufacturing process.
• Furthermore, ball grid array (BGA) defects—including BGA shorts and open circuit connections—can be detected during automated optical inspection (AOI) tests. These inspections adhere to established industry guidelines and requirements, such as IPC standards, which set forth the quality benchmarks for PCB manufacturing and assembly.

7. What are the Types of AOI Systems?

AOI inspection machines in PCB assembly are primarily categorized as follows:

1) By production line position:

Post-Solder AOI: Installed after the screen printer. Specifically detects solder paste printing quality issues such as paste presence/absence, offset, area, thickness, and short circuits.

Pre-Reflow AOI: Installed after the placement machine and before the reflow oven. Primarily detects defects after component placement, including missing components, misalignment, tombstoning, incorrect part types, physical damage, and polarity errors.

Post-Reflow AOI: This is the most widely used AOI type. It is capable of simultaneously detecting multiple defects arising from the placement and soldering processes. These defects include solder joint shorts, cold solder joints, insufficient solder bridging.

2) By Camera Structure:

Vertical Camera AOI: Camera lens positioned perpendicular to the PCBA board surface.

Tilted Camera AOI: The camera lens is angled to facilitate inspection of component sides and solder joints.

3) By Light Source Type:

Color Lens AOI: Utilizes red, green, and blue light sources with computer-processed color ratios.

Black-and-White Lens AOI: Uses monochromatic light sources with computer-processed grayscale ratios.

4) By Equipment Operation Mode:

In-line AOI: Equipment directly integrated with the production line. PCBA flows continuously through the line, automatically diverted or advanced after inspection. This method offers high efficiency, suits mass production, and enables fully automated end-to-end inspection.

Off-line AOI: Equipment operates independently. Manual loading of PCBA for inspection is required, followed by manual unloading after inspection. This method offers high flexibility, facilitating focused inspection of specific board types or repaired boards, but efficiency is relatively lower.

5) Classification by Inspection Principle:

‌2D AOI‌: Primarily identifies defects through two-dimensional image comparison. This is the most widely used technology, effectively detecting the most common placement and soldering defects.

‌3D AOI‌: Combines optical imaging with blue-light laser 3D contour measurement technology to provide volumetric information about solder joints. It offers higher coverage and accuracy for micro-components (e.g., 01005) and complex packages (e.g., BGA), excelling particularly in detecting three-dimensional parameters like joint volume and height.

Laser AOI: It is capable of detecting height information, but it features complex programming and slower speeds. It is currently the most expensive AOI system, but offers the highest reliability and precision, even detecting voids within solder joints.

8.Comparison of AOI with Other Inspection Methods

Currently, inspection technologies applicable to PCB assembly can be primarily categorized into: Automated Optical Inspection (AOI), Automated X-ray Inspection (AXI), In-Circuit Testing (ICT), Flying Probe Testing, and Functional Testing (FT). Among these, AOI is the only technology capable of real-time, inline application while simultaneously reflecting trends in SMT process variations. While AOI dominates PCB assembly, each inspection method has distinct advantages, making the choice dependent on specific requirements.

‌AOI vs. Manual Visual Inspection‌

AOI operates 5–15 times faster than manual inspection, detecting defects on a board in 10–30 seconds compared to 3–5 minutes for manual inspection. In terms of precision, AOI can detect defects as small as 0.01 mm — ten times finer than manual inspection (0.1 mm) — with a significantly lower error rate. AOI is also more consistent, as it follows pre-set algorithms to ensure uniform standards. Human inspectors, on the other hand, are susceptible to mood and fatigue. However, manual inspection retains cost advantages for small batches and simple PCBA.

‌AOI vs. X-Ray Inspection‌

AOI can only detect surface-visible solder joints and is ineffective for joints beneath packages like BGAs or QFPs. X-ray inspection penetrates packaging to reveal internal joint conditions, making it the core technology for detecting internal defects in high-density PCBA (e.g., IC carrier boards). However, X-ray equipment is more costly and operates at relatively slower speeds.

‌AOI vs. Flying Probe Testing‌

AOI excels at detecting visual defects like open circuits, short circuits, and component misalignment. Flying probe testing focuses on electrical performance verification, confirming whether an AOI-detected “break” is truly open or a “short” is genuinely conductive. In terms of efficiency, AOI is faster (10-30 seconds per board), while flying probe testing requires 1-2 minutes per board. Typically, AOI is used for rapid screening in mass production, while flying probe testing is employed for sample verification or secondary confirmation of suspected defects identified by AOI.

In a word, AOI technology is merely a tool for fault detection and quality monitoring—not a universal solution for enhancing product quality. One should not expect automatic quality improvement simply by adopting AOI. Only by organically integrating the AOI system into the PCB assembly production and management workflow can the true benefits of this technology be effectively realized.

9.AOI Test Cost

A fully integrated AOI solution starts at a minimum of $30,000, with dual-lane configurations and 3D-enabled systems commanding a notably higher price tag.

It’s important to note that such systems are best suited for high-throughput manufacturing scenarios where circuit boards feature minimal variations in component types and layouts. As a result, investing in this kind of equipment only makes sense if your DIY project truly demands the precision and efficiency that these advanced AOI tools can deliver.

10.Summary

By employing advanced camera systems, sophisticated lighting, and intelligent software, AOI autonomously scans PCBs to detect a wide array of defects—from solder joint imperfections and missing components to incorrect polarity and physical damage. Its ability to perform rapid, consistent, and highly accurate inspections far surpasses the capabilities of manual methods, drastically reducing rework costs, minimizing scrap rates, and improving overall product reliability.

The presence of smaller components and higher densities on contemporary PCB has further prompted the increasing acceptance of automatic checking systems. These facts have been discussed in this article to foster an increased understanding of its role. Orinew Technology has advanced detection technology; if you need it, you can contact us in time to get service.

In the rapidly evolving landscape of electronics, the ability to efficiently convert direct current (DC) into alternating current (AC) is paramount. This critical function is primarily handled by an often-overlooked yet incredibly sophisticated component: the Inverter Printed Circuit Board (PCB). These specialized PCBs are the technological heart of countless devices, from renewable energy systems to everyday household appliances. Understanding their types, selection criteria, and intricate design considerations is essential for anyone involved in modern power electronics.

This comprehensive guide delves into the world of Inverter PCBs, exploring their fundamental role, the various types available, their primary components, and the crucial design principles that ensure their optimal performance and reliability. Whether you’re an engineer, a student, or simply curious about the technology powering our world, this article will provide valuable insights into the core of power conversion.

1. What Is an Inverter PCB?

An Inverter PCB serves as the central control unit for an inverter circuit, which is an electronic device designed to convert DC power into AC power . This conversion is fundamental for powering a vast array of AC-driven equipment from DC sources, such as batteries, fuel cells, or solar panels. Essentially, the Inverter PCB manages the switching of power electronic components (like MOSFETs or IGBT s) to create an alternating waveform, often a sine wave, from a steady DC input.

Beyond simple conversion, modern Inverter PCBs incorporate complex control logic, often managed by microcontrollers or Digital Signal Processors ( DSPs), to regulate output voltage, frequency, and waveform purity. They are engineered to handle significant power levels while ensuring efficiency, stability, and protection against various electrical faults.

2. Benefits of an Inverter PCB

The strategic use and meticulous design of Inverter PCBs yield several significant advantages:

• Enhanced Power Efficiency:Optimized layouts and component placement minimize power losses, leading to higher energy conversion efficiency. This is crucial for battery -powered systems and renewable energy applications where every watt counts.
• Increased Reliability:Robust design, proper thermal management, and quality component selection contribute to the longevity and stable operation of the inverter, reducing the likelihood of failure in demanding environments.
• Compact and Space-Saving Design:PCBs allow for the integration of numerous components into a small footprint, leading to more compact and lighter inverter units, which is vital for portable devices and space-constrained applications.
• Versatility and Customization:Inverter PCBs can be tailored to various power levels, voltage requirements, and application-specific features, offering designers immense
• Superior Thermal Management:Thought ful PCB design facilitates efficient heat dissipation, preventing component overheating and ensuring long-term performance, especially in high-power applications.
• Improved Electromagnetic Compatibility (EMC):Proper layout and grounding strategies on the PCB help mitigate electromagnetic interference (EMI) and ensure the inverter operates without disrupting other electronic systems.
• Cost-Effectiveness at Scale:While initial design might be complex, mass production of well-designed Inverter PCBs can be highly cost- effective, particularly for consumer electronics and industrial applications.

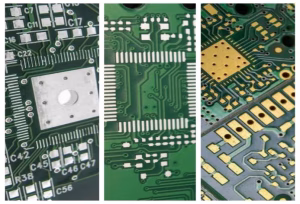

3. Types of Inverter PCBs

Inverter PCBs are categorized primarily by the number of conductive layers they possess, each offering different levels of complexity , performance, and cost:

3.1 Single-Sided Inverter PCB

As the simplest type, a single-sided (or single-layer) Inverter PCB features only one conductive copper layer, typically on a fiberglass substrate. Components are usually placed on one side, with traces routed on the same side. These are the most cost-effective and easiest to manufacture, making them suitable for low-power, less complex inverter applications where space and high-density routing are not critical concerns. Examples include basic power converters in simple appliances or LED drivers.

3.2 Double-Layer Inverter PCB

Double-layer (or double-sided) Inverter PCBs have two conductive copper layers, one on the top and one on the bottom, separated by a dielectric material. Components can be mounted on both sides, and traces can be routed on both layers, connected by vias (plated through-holes). This type offers greater circuit density and routing flexibility compared to single-sided boards. They are a common choice for moderate-power inverters, providing a good balance between cost, performance, and complexity, allowing for more intricate power and control paths.

3.3 Multilayer Inverter PCB

Multilayer Inverter PCBs feature three or more conductive layers, stacked together with insulating materials. These boards can range from 4 to 16 (or even more) layers, providing significantly increased routing density and signal integrity. Inner layers are often dedicated to ground planes, power planes, and high-speed signal routing. Multilayer PCBs are indispensable for high-power, high-frequency, and highly complex inverter designs that require excellent thermal performance , superior EMI/EMC characteristics, and the ability to integrate many components in a compact space. They are crucial for applications like solar inverters, electric vehicle power electronics, and high-performance UPS systems.

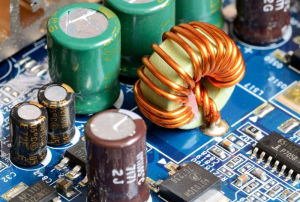

4. Primary Components of Inverter PCBs

An Inverter PCB integrates a variety of components, each playing a critical role in the power conversion process and overall system functionality:

• Power Switching Devices:

• MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors):Commonly used in lower to medium power inverters due to their high switching speeds and efficiency.
• IGBT s (Insulated Gate Bipolar Transistors):Preferred for higher power applications (e.g., industrial motor drives, high-power UPS) due to their robust current handling capabilities and lower conduction losses compared to MOSFETs at very high currents.
• SiC/GaN Devices:Emerging wide-bandgap semiconductors like Silicon Carbide (SiC) and Gallium Nitride (GaN) offer even higher switching frequencies, greater efficiency, and better thermal performance, paving the way for smaller, more efficient inverters.
• Capacitors:
• Input Filter Capacitors:Smooth the incoming DC voltage, reducing ripple and providing a stable voltage source for the switching devices.
• Output Filter Capacitors:Work with inductors to smooth the rectified AC waveform, ensuring a clean sine wave output.
• Decoupling Capacitors: Placed close to ICs to suppress high-frequency noise and ensure stable power supply to control circuits.
• Inductors:Crucial for filtering the output waveform, energy storage, and in some topologies, for boosting voltage. They work in conjunction with capacitors to form LC filters, shaping the output into a pure sinusoidal wave.
• Resistors:Used for current limiting, voltage division, biasing, and feedback networks within the control circuitry.
• Diodes:Employed for rectification, voltage clamping, and freewheeling paths to protect switching devices from inductive spikes.
• Microcontroller/DSP (Digital Signal Processor):The “brain” of the inverter, responsible for generating PWM (Pulse Width Modulation) signals to control the switching devices, monitoring system parameters (voltage, current, temperature), and implementing protection features.
• Gate Drivers:Interface circuits that provide the necessary voltage and current to rapidly turn the MOSFETs/IGBTs on and off, ensuring efficient and reliable switching.
• Connectors:For input DC power, output AC power, control signals, and communication interfaces.

5. Key Inverter PCB Design Considerations

Designing an Inverter PCB is a complex task that requires careful attention to multiple factors to ensure optimal performance, reliability , and safety. Key points in Inverter PCB Design include:

5.1 Layout and Trace Routing

• Short, Wide Traces:Power paths carrying high currents (e.g., between input capacitors , switching devices, and output inductors) should be as short and wide as possible to minimize parasitic inductance and resistance, thereby reducing power losses and voltage drops.
• Minimizing Loop Areas:High-frequency switching paths create electromagnetic fields. Minimizing the loop area of these paths helps reduce EMI radiation and improves signal integrity.
• Separation of Grounds:It’s often beneficial to separate power ground and control ground with a single-point connection to prevent high-current noise from interfering with sensitive control signals.
• Component Placement:Place critical components (e.g., gate drivers near switching devices, decoupling capacitors near ICs) strategically to minimize trace lengths and improve performance . Heat-generating components should be spread out or positioned for optimal heat sink attachment.
• High-Voltage and High-Current Separation:Ensure adequate clearance and creepage distances between high-voltage traces and low-voltage traces/components to prevent arcing and ensure safety.

5.2 Thermal Management

Heat is the primary enemy of power electronics. Effective thermal management is crucial for the longevity and reliability of an inverter.

• Heat Sinks:Design for proper attachment of heat sinks to MOSFETs/IGBTs and other heat-generating components.
• Thermal Vias:Use an array of thermal vias under power components to transfer heat from the top layer to internal copper planes or to the bottom layer for dissipation.
• Copper Pours:Utilize large copper pours on power layers to act as heat spreaders.
• Airflow:Consider the overall enclosure design for natural convection or forced air cooling (fans).

5.3 EMI/EMC Considerations

Inverters generate significant electromagnetic noise due to high-frequency switching. Minimizing EMI and ensuring EMC ( Electromagnetic Compatibility) is vital.

• Ground Planes:Solid ground planes (especially in multilayer boards) act as shields and provide low-impedance return paths, reducing EMI.
• Filtering:Integrate input/output filters (LC filters, common-mode chokes) to suppress conducted and radiated emissions.
• Trace Shielding:Route sensitive signal traces between ground planes or use guard traces.
• Component Selection:Choose components with low EMI characteristics.

5.4 Material Selection

The choice of PCB substrate material significantly impacts performance, especially at higher frequencies and temperatures.

• FR-4:Standard and cost-effective for most applications.
• High-Tg Materials:For higher temperature applications, materials with higher glass transition temperatures (Tg) are necessary.
• Low -Loss/High-Frequency Materials:For very high-frequency inverters, materials with lower dielectric constant (Dk) and dissipation factor (Df) are preferred to minimize signal loss.
• Thermal Conductivity:Materials with better thermal conductivity can aid in heat dissipation.

5.5 Reliability and Durability

Designing for robustness ensures the inverter can withstand operational stresses and environmental factors.

• Robust Components :Select components rated for worst-case voltage, current, and temperature conditions, with sufficient derating.
• Mechanical Stability:Ensure the PCB and components can withstand vibrations and mechanical stress.
• Con formal Coating:For harsh environments (humidity, dust), conformal coatings can protect the PCB.
• Testing:Thorough testing, including environmental stress testing, is crucial.

6. Selecting the Right Inverter PCB: Key Specifications

When selecting or designing an Inverter PCB, several key specifications must be carefully considered to match the application’s requirements. The following table outlines typical considerations across different power ranges and complexities:

7. Applications of Inverter PCBs

The versatility and necessity of Inverter PCBs are evident in their widespread adoption across numerous industries and applications:

• Solar Power Systems:Crucial for converting the DC output from solar panels into usable AC power for homes and grids. This includes grid-tied, off-grid, and hybrid inverters.
• Uninterruptible Power Supplies (UPS):Provide seamless power backup by converting battery DC power to AC during grid outages, protecting sensitive electronics like computers and medical equipment.
• Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs):Inverter PCBs are at the heart of the powertrain, converting the battery’s DC power to AC to drive the electric motors.
• Motor Drives:Used in industrial automation to control the speed and torque of AC motors, significantly improving energy efficiency in factories and machinery.
• Consumer Electronics:Found in appliances like air conditioners, refrigerators, and induction cooktops that utilize inverter technology for variable speed control and energy efficiency.
• Industrial Power Supplies:Provide stable and regulated AC power for various industrial machinery and processes.
• Wind Energy Systems:Similar to solar inverters, they convert the variable AC output from wind turbines into grid-compatible AC power.

8.FAQs

9.Summary

An inverter PCB is the core control unit that converts DC power to AC power, essential for applications like solar systems, UPS, and EVs. Key considerations in its design include selecting appropriate power switching devices (MOSFETs, IGBTs, SiC/GaN), implementing effective thermal management and EMI/EMC strategies, and choosing the right PCB type (single-sided, double-layer, or multilayer) based on power requirements. The design prioritizes efficiency, reliability, and compactness through careful layout, component selection, and adherence to key specifications.

Wearable technology has rapidly evolved from niche gadgets to mainstream essentials, encompassing everything from smart watches and fitness trackers to medical patches and augmented reality glasses. The core of these compact, sophisticated devices lies in their Printed Circuit Boards (PCBs). Unlike traditional electronics, wearable devices demand PCBs that are not only miniaturized but also flexible, durable, and capable of operating reliably in dynamic environments.

The unique requirements of wearable devices present significant challenges and opportunities for PCB assembly. Designers and manufacturers must navigate a complex landscape of material selection, intricate design considerations, and advanced assembly techniques to create robust, high-performance electronics that seamlessly integrate with the human body and everyday life. This comprehensive guide delves into the critical aspects of PCB assembly for wearable devices, offering insights into material choices, design best practices, assembly processes, and quality assurance.

1. Introduction of Wearable PCB

Wearable PCBs are electronic core circuit boards specifically designed for wearable smart devices (such as smartwatches and health monitoring patches). Their core definition lies in meeting two key requirements simultaneously: extreme miniaturization and adaptability to physical environments, ensuring reliable operation even when the device is bent, twisted, or exposed to sweat. Traditional rigid circuit boards (such as FR-4) cannot meet these demands, thus giving rise to new PCB technologies centered on flexibility and stretchability.

2. Key Design Challenges in Wearable PCB Assembly

Designing and assembling PCBs for wearable devices is an intricate process, fraught with unique challenges that stem from their intended use and form factor. Overcoming these hurdles is paramount for product success.

2.1 Miniaturization and High-Density Interconnect (HDI)

Wearables are inherently small, requiring PCBs that are as compact as possible. This necessitates the use of tiny components (e.g., 01005, 0201 package sizes), fine-pitch ICs (BGAs, CSPs), and High-Density Interconnect ( HDI) techniques. HDI allows for more components in a smaller area through microvias and very fine lines and spaces, but it adds complexity to design and manufacturing.

2.2 Flexibility and Durability

Many wearable devices conform to the body or are subjected to constant movement, requiring flexible PCBs (FPCBs). These PCBs must withstand repeated bending, twisting, and impact without compromising electrical integrity. Ensuring long-term durability under such mechanical stress is a primary concern, demanding careful material selection and design.

2.3 Power Management and Thermal Dissipation

With limited space for batteries, power efficiency is critical. PCBs must be designed to minimize power consumption while effectively dissipating heat generated by tightly packed components. Thermal management is crucial to prevent overheating, which can degrade performance and component lifespan.

2.4 Signal Integrity and EMI/EMC

Miniaturization and flexible designs can introduce signal integrity issues due to impedance mismatches, crosstalk, and electromagnetic interference (EMI). Ensuring robust signal transmission and electromagnetic compatibility (EMC) in a constrained and often high-frequency environment requires meticulous layout and shielding strategies.

2.5 Reliability in Harsh Environments

Wearables are exposed to sweat, dust, humidity, and varying temperatures. PCBs must be resistant to environmental factors, requiring specialized coatings, robust component selection, and reliable solder joints that can endure these conditions over the device’s lifespan.

3. Material Selection: The Foundation of Flexible Design

The choice of materials is fundamental to addressing the unique demands of wearable PCBs, particularly regarding flexibility, durability, and performance. The primary focus shifts from rigid FR-4 to flexible substrates and specialized adhesives.

3.1 Flexible Substrates

• Polyimide (PI) / Kapton:This is the most common flexible substrate due to its excellent thermal stability, chemical resistance, and mechanical flexibility. It maintains its properties over a wide temperature range, making it ideal for processes like reflow soldering.
• Liquid Crystal Polymer (LCP):LCP offers superior moisture resistance, excellent high-frequency electrical performance, and good mechanical properties. It’s particularly suited for high-speed data transmission and applications requiring hermetic sealing, though it can be more expensive than PI.
• PEN (Polyethylene naphthalate):Offers a balance of properties, sometimes used as a lower-cost alternative to PI, though generally with lower thermal resistance.

3.2 Conductor Materials

Typically, thin rolled annealed (RA) copper foils are used for flexible PCBs because they are more ductile and can withstand bending better than electrodeposited (ED) copper. These foils are usually bonded to the flexible dielectric using a thin layer of adhesive.

3.3 Adhesives and Coverlays

Specialized flexible adhesives (e.g., acrylic, epoxy-based) are used to bond layers together and attach components. Coverlays (typically polyimide films with an adhesive layer) protect the external traces and provide additional mechanical stability and insulation, crucial for durability in wearable applications.

3.4 Solder Paste and Flux

Low-temperature solder pastes are often preferred to minimize thermal stress on flexible substrates and heat -sensitive components. The choice of flux is also critical to ensure good wetting and minimal residue that could affect flexibility or reliability.

3.5 Encapsulants and Conformal Coatings

To enhance environmental protection, especially against moisture and sweat, conformal coatings or encapsulants (e.g., silicone, urethane, acrylic) are frequently applied over the assembled PCB. These provide an extra layer of defense against environmental degradation.

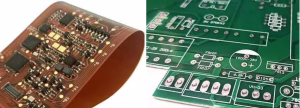

4. Flexible PCB Materials and Stack-Up Design

The design of the flexible PCB stack-up is crucial for both electrical performance and mechanical reliability. It dictates how the board will flex, its impedance characteristics, and its overall robustness.

4.1 Single-Layer Flexible PCBs

These are the simplest and most flexible, consisting of a single conductor layer sandwiched between two dielectric layers (e.g., PI film and coverlay). Ideal for basic interconnections that require maximum flexibility.

4.2 Double-Layer Flexible PCBs

Featuring two conductor layers, these allow for more complex routing and component placement while maintaining good flexibility. Vias connect the two layers.

4.3 Multi-Layer Flexible PCBs

For high-density and complex designs, multiple layers of conductors and dielectrics are laminated together. These offer superior electrical performance (e.g., controlled impedance) but are less flexible than single or double-layer variants. Careful design is needed to manage flexibility in bending areas.

4.4 Rigid-Flex PCBs

A hybrid approach combining rigid FR-4 sections with flexible PI sections. This is highly advantageous for wearables where certain areas need mechanical rigidity (e.g., for connectors or heavy components) while others require flexibility to conform to a shape or provide dynamic movement. The transition zones between rigid and flex sections require meticulous design to prevent stress concentration .

4.5 Stack-Up Considerations

• Material Compatibility:All materials (dielectric, adhesive, copper) must be compatible and withstand processing temperatures.
• Controlled Impedance:For high-speed signals, the stack-up must be designed to maintain consistent impedance, especially challenging in flexible sections.
• Bend Radius:A critical design parameter. Traces should be designed to minimize stress when bent . Wider traces, curved paths instead of sharp angles, and avoidance of vias in active bending zones are common practices.
• Layer Count and Thickness:A lower layer count and thinner materials generally lead to greater flexibility.

5. Component Placement and Signal Routing Strategies

The success of a wearable device hinges on meticulous component placement and signal routing, especially in flexible and miniaturized PCBs.

5.1 Mini aturized Component Selection

Designers must opt for the smallest available components, such as 01005 or 0201 resistors and capacitors, and highly integrated ICs in wafer-level chip- scale packages (WLCSP), chip-scale packages (CSP), or ball grid arrays (BGA). These tiny components demand high-precision placement.

5.2 Strategic Component Placement

• Minimize Stress:Components , especially rigid ones, should be placed in non-bending areas of flexible PCBs or on rigid sections of rigid-flex boards to prevent stress on solder joints during flexing.
• Weight Distribution:Heavier components should be securely anchored and evenly distributed to maintain balance and prevent undue mechanical stress.
• Thermal Management:Heat-generating components must be placed with adequate clearance or connected to thermal vias/pads to facilitate heat dissipation.
• Accessibility:Consider accessibility for testing, rework, and potential repair, although this is often secondary to miniaturization in wearables.

5.3 Signal Routing Techniques for Flexible PCBs

• Curved Traces:Avoid sharp 90-degree angles in traces, especially in bending areas. Use smooth, curved traces to distribute stress evenly.
• Trace Width and Spacing:Maintain consistent trace widths for impedance control. In bending areas , wider traces can be more resilient, but trade-offs with density must be considered.
• Minimize Vias:Reduce the number of vias in areas subject to bending, as vias create stress points. When vias are necessary, use teardrop pads to strengthen the connection.
• Differential Pairs:Route differential pairs closely and symmetrically to maintain signal integrity, even around curves.
• Grounding and Shielding:Implement robust grounding planes . For EMI/EMC, consider shielded traces or conductive coatings/films to isolate sensitive signals.

6. SMT Assembly and Soldering Techniques for Wearable PCBs

The assembly of wearable PCBs requires specialized processes and equipment to handle the delicate flexible substrates and ultra-small components.

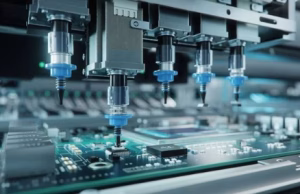

6.1 Precision SMT Equipment

High-precision pick-and-place machines capable of handling 0100 5 components and fine-pitch BGAs are essential. Vision systems are critical for accurate alignment on flexible substrates, which can be prone to movement or deformation.

6.2 Solder Paste Application

Stencil printing for ultra -fine pitch components requires precise stencil design (e.g., laser-cut stencils with nano-coatings) and controlled paste deposition. Jetting technology is an alternative that offers even greater flexibility and precision for small pads and complex designs, eliminating the need for stencils.

6.3 Reflow Soldering

• Profile Optimization:Reflow profiles must be meticulously optimized for the specific flexible materials and low-temperature solder pastes (if used). Excessive heat can damage flexible substrates or cause warpage.
• Support Fixtures:Flexible PCBs require rigid support fixtures or carriers during reflow to prevent warping, sagging, or movement, ensuring consistent solder joint quality.
• Vacuum Reflow:In some cases, vacuum reflow can be used to minimize voids in solder joints, which is beneficial for reliability, especially with BGAs.

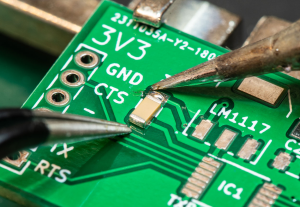

6.4 Component Handling and Inspection

Due to the small size and fragility of components and flexible boards, careful handling throughout the entire assembly process is paramount. Automated Optical Inspection (AOI) is crucial for detecting misplaced components, solder bridges, and open circuits. X- ray inspection is indispensable for verifying solder joint quality under BGAs and other concealed connections, ensuring no voids or shorts.

6.5 Specialized Techniques for Flexible Circuits

• Die Bonding/Wire Bonding:For bare die integration directly onto the flex circuit, techniques like die bonding (with conductive epoxies) and wire bonding (for interconnections) are employed, often for extreme miniaturization.
• Adhesive Application:Precision dispensing of adhesives for structural support or encapsulation requires specialized equipment.
• Plasma Cleaning:Used before soldering or bonding to ensure optimal surface cleanliness and adhesion.

7. Ensuring Quality, Reliability , and Testing

Given the rigorous demands on wearable devices, stringent quality control and thorough testing are non-negotiable.

7.1 Functional Testing

Every assembled PCB must undergo comprehensive functional testing to ensure all components and circuits perform as intended. This often involves custom test fixtures and automated test equipment (ATE).

7.2 Environmental and Durability Testing

• Bend Testing:Simulates the repeated flexing a wearable device will experience. Test parameters include bend radius, number of cycles, and angle of bend.
• Thermal Cycling:Exposes the PCB to rapid temperature changes to test solder joint integrity and material resilience.
• Humidity Testing :Evaluates resistance to moisture ingress and corrosion.
• Drop and Vibration Testing:Assesses mechanical shock resistance, especially critical for devices worn during physical activity.
• Salt Fog Testing:For devices exposed to sweat or marine environments, to check for corrosion resistance.

7.3 IPC Standards

Adherence to relevant IPC standards (e.g., IPC-6013 for Flexible Printed Boards, IPC-A -610 for Acceptability of Electronic Assemblies) is vital to ensure consistent quality and reliability.

8. The Future of Wearable PCB Assembly

The wearable device market continues to innovate, pushing the boundaries of PCB technology. Future trends include:

• Further Miniaturization:Continued demand for smaller components and advanced HDI techniques.
• Stretchable Electronics:Beyond flexible, truly stretchable PCBs capable of deforming significantly.
• Integrated Sensors:More complex integration of biometric, environmental, and motion sensors directly into the PCB substrate.
• Biocompatible Materials:Enhanced use of materials that are safe for direct skin contact and long-term wear.
• Additive Manufacturing:3D printing of circuit traces and even components could offer unprecedented design freedom and rapid prototyping.
• Advanced Power Solutions:Integration of tiny, high-efficiency power management ICs and energy harvesting technologies.

9.FAQs

10.Summary

The world of wearable technology is driven by innovation in PCB assembly. The demand for increasingly smaller, more flexible, and highly reliable devices necessitates a specialized approach to design, material selection, and manufacturing processes. From the careful choice of flexible substrates like Polyimide and LCP to the intricate strategies for component placement and signal routing, every step is critical. Advanced SMT techniques, coupled with rigorous quality assurance and testing, ensure that these tiny technological marvels can withstand the rigors of everyday wear while delivering seamless performance. As wearables continue to evolve, so too will the methodologies for their electronic core, pushing the boundaries of what’s possible in compact, intelligent devices.

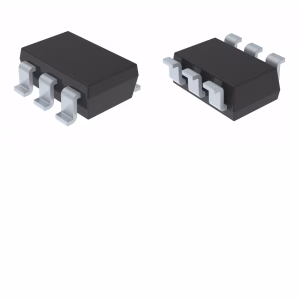

Explore the SDM10M45SD-7-F, a high-performance Schottky diode array from Diodes Incorporated, perfect for advanced circuit designs and power management.

In the intricate world of electronics, every electronic component plays a pivotal role in ensuring optimal performance, efficiency, and reliability. Among these, discrete semiconductor products like diodes are fundamental building blocks. Today, we’re taking a deep dive into a specific component that has become a staple in many modern designs: the SDM10M45SD-7-F from Diodes Incorporated. This powerful yet compact Schottky diode array offers a unique combination of speed, low forward voltage, and robust performance, making it an indispensable asset for engineers and hobbyists alike. Whether you’re designing complexvoltage regulator integrated circuits or simply need a reliable rectifier solution, understanding the nuances of this device is key to unlocking its full potential.

1. Introduction to the SDM10M45SD-7-F

The SDM10M45SD-7-F is a high-performance diode array manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This particular component is celebrated for its dual-diode configuration, offering two pairs of series-connected Schottky diodes within a compact Surface Mount SOT-23-6 package. Its design emphasizes efficiency and space-saving, making it ideal for a wide range of portable and compact electronic devices.

As adiscrete semiconductor product, the SDM10M45SD-7-F stands out for its low forward voltage and fast switching capabilities, which are hallmarks of Schottky technology. These characteristics are crucial for minimizing power losses and improving the overall efficiency of circuits, particularly in applications where every milliwatt counts. From power management in consumer electronics to sophisticated industrial control systems, this diode array provides a reliable solution for various rectification, clamping, and protection tasks.

2. Key Features and Technical Specifications

To truly appreciate the versatility of the SDM10M45SD-7-F, it’s essential to delve into its technical specifications. This device is specifically engineered to deliver superior performance in demanding environments. The core of its functionality lies in its dual DIODE ARR SCHOTT 45V 100MA SOT26 configuration, providing robust operation up to 45 volts and handling a continuous forward current of 100mA.

One of its most defining features is the Diode Array 2 Pair Series Connection. This arrangement provides flexibility for designers, allowing for various circuit configurations such as common cathode, common anode, or isolated connections, depending on the application’s specific requirements. This versatility makes it suitable for diverse roles, from simple signal rectification to more complex power management circuits.

Let’s break down some of the critical specifications that make the SDM10M45SD-7-F a compelling choice:

The compact SOT-23-6 package is a significant advantage, enabling high-density PCB layouts crucial for miniaturized electronic devices. The low forward voltage (VF) is particularly beneficial in power-sensitive applications, as it directly translates to less energy wasted as heat, thereby improving the overall system efficiency and reducing the need for extensive heat dissipation solutions.

3.SDM10M45SD-7-F Diodes Incorporated Data Sheet Download

• SDM10M45SD-7-F Diodes Incorporated Data Sheet Download

4.The Power of Schottky Diodes: Why They Matter

The term “Schottky” is not just a fancy label; it signifies a fundamental difference in how these diodes operate compared to standard PN junction diodes. Schottky diodes are characterized by a metal-semiconductor junction, which results in several distinct
advantages:

• Low Forward Voltage Drop:As seen with the SDM10M45SD-7-F’s typical 0.38V at 10mA, Schottky diodes exhibit a significantly lower forward voltage drop than silicon PN diodes (which typically range from 0.6V to 1.7V). This reduction in voltage drop directly translates to lower power dissipation and higher efficiency, especially critical in battery-powered devicesor high-frequency applications.
• Fast Switching Speed:Unlike PN junction diodes, Schottky diodes do not have a reverse recovery charge storage effect. This means they can switch from forward bias to reverse bias much faster, virtually This characteristic is invaluable in high-frequency circuits, such as switch-mode power supplies (SMPS), RF circuits, and high-speed data line protection.
• Reduced Junction Capacitance:The simpler metal-semiconductor junction of a Schottky diode typically results in lower junction capacitance. This further contributes to faster switching speeds and better performance at higher frequencies.

These advantages make Schottky diodes, and specifically the SDM10M45SD-7-F, the preferred choice for a multitude of modern electronic designs that demand both efficiency and speed.

5. Common Applications of the Diode Array

The versatility and robust characteristics of the SDM10M45SD-7-F allow it to be employed across a broad spectrum of electronic applications. Its designation as a DIODE ARR SCHOTT 45V 100MA SOT26 makes it particularly well-suited for:

• Rectification:As a fundamental function ofdiodes, the SDM10M45SD-7-F excels in rectifying AC signals into DC. Its low forward voltage drop ensures efficient power conversion in small power supplies or local regulation stages.
• Voltage Regulator Integrated Circuits (VRICs):The device is frequently used in conjunction with VRICs for various purposes, such as output rectification, reverse polarity protection, or as part of voltage clamping circuits. Its fast switching speed helps maintain stability in switching regulators
• Power Management in Portable Devices:Given its compactSurface Mount SOT-23-6 package and low power loss, it’s an excellent choice for battery-powered devices like smartphones, tablets, and wearable electronics where space and energy efficiency are paramount.
• Reverse Polarity Protection:Implementing the diode array in series with the powerinput can protect sensitive circuitry from damage if the power source is connected incorrectly. The low VF minimizes voltage drop and power loss in this critical protection role.
• Clamping and ESD Protection:In signal lines, the diodes can be configured to clamp voltage transients, protecting integrated circuits from overvoltage spikes, including electrostatic discharge (ESD) events.
• High-Frequency Switching:Its rapid switching speed makes it suitable for use in high-frequency SMPS, DC-DC converters, and other circuits where fast current steering is required.

Ultimately, the SDM10M45SD-7-F is a go-to component for engineers looking for a reliable, efficient, and space-saving solution in the realm of Discrete Semiconductor Products.

6. Understanding Part Numbers: -7-F vs. -FDITR-ND

When working with electronic components, understanding part numbering conventions is crucial for proper ordering and identification. The primary part number we’re discussing is SDM10M45SD-7-F. Here’s what the suffixes typically signify:

• -7-F:This suffix usually indicates the packaging and reel size. For Diodes Incorporated, ‘-7’ often denotes a 7-inch reel size, and ‘-F’ signifies “lead-free” or “RoHS compliant,” which is astandard requirement in modern electronics manufacturing.
• SDM10M45SD-FDITR-ND:This is a common part number variant you might encounter, particularly from distributors like Digi-Key (indicated by ‘-ND’). The ‘FDITR’ portion likely refers to a specific reel or packaging option tailored for distributor stock, such as “Tape & Reel.” Functionally, the core component (SDM10M45SD) remains the same, but the packaging and quantity might differ. Always consult the distributor’s specific part number details to confirm packaging type and quantity.

These distinctions are important for procurement and manufacturing, ensuring you receive the correct quantity and packaging format for your assembly processes.

7. Design and Implementation Considerations

When incorporating thevSDM10M45SD-7-F into a design, several factors should be considered to ensure optimal performance and longevity:

• Thermal Management:While Schottky diodes have low forward voltage, they stilldissipate power, especially at higher currents. Ensure that the PCB layout provides adequate copper areas for heat dissipation, particularly for the anode and cathode pads of the SOT-23-6  The device’s maximum junction temperature of +150°C should not be exceeded.
• PCB Layout:For high-frequency applications, keep traces connecting to the diode array short and direct to minimize parasitic inductance and capacitance. This is especiallyimportant for devices like the DIODE ARR SCHOTT 45V 100MA SOT26, where fast switching is a key advantage.
• Reverse Voltage Rating:Always ensure that the peak reverse voltage in your application does not exceed the 45V rating of the diode. Exceeding this limitcan lead to device breakdown.
• Current Derating:For applications operating at the higher end of the temperature range, it’s good practice to derate the maximum forward current. Consult the datasheet’s current derating curves for precise guidance.
• Soldering:As aSurface Mount device, proper reflow soldering profiles must be followed to prevent damage to the component and ensure reliable electrical connections.

By adhering to these design best practices, engineers can maximize the benefits of the SDM10M45SD-7-F and ensure the robustness of their electronic systems.

8. SDM10M45SD-7-F Diodes Incorporated Price
According to market conditions, the unit price for this SDM10M45SD-7-F Schottky diode array typically ranges between $0.08 and $0.3.

This price range may vary depending on purchase quantity, supplier channels, and market supply and demand, but it remains a highly cost-effective and commonly used component in the market.

9.FAQs

10.Summary

The SDM10M45SD-7-F from Diodes Incorporated is a highly efficient and versatile Schottky diode array, perfect for modern electronic designs demanding speed, low power consumption, and compactness. Its dual Diode Array 2 Pair Series Connection within a Surface Mount SOT-23-6 package offers significant design flexibility for applications ranging from rectifiersand power management in portable devices to enhancing voltage regulator integrated circuitsand providing critical protection. With a robust 45V reverse voltage and 100mA forward current capability, this discrete semiconductor product embodies reliability and efficiency. Understanding its features, from its low forward voltage drop to its rapid switching characteristics, empowers designers to create more effective and power-efficient electronic systems.

1. Introduction: The Unsung Hero of Electronics

In the vast and intricate world of modern electronics, every component plays a crucial role in ensuring the seamless operation of devices and systems. From consumer gadgets to heavy industrial machinery, the reliability of electrical connections is paramount. Among the myriad of electronic components, connectors stand as critical interfaces, bridging circuits and facilitating data and power transfer. When it comes to high-performance and dependable connections, Hirose (HRS) is a name that consistently emerges at the forefront. Their extensive range of HRS Connectors are trusted globally for their robust design and superior performance.

This comprehensive guide delves into one specific, yet highly significant,electronic part: the DH30B-37S. As a prominent member of the esteemed DH Series Connectors, the DH30B-37S is far more than just a piece of hardware; it’s a solution engineered for precision, durability, and versatility. Whether you’re a design engineer, a procurement specialist, or simply someone keen to understand the backbone of modern electronics, this article will illuminate the core attributes, applications, and enduring value of this vital 37 Position Receptacle Connector.

2. Understanding the HRS DH30B-37S Connector

The DH30B-37S is a high-density, multi-pin rectangular connector designed for demanding industrial and commercial applications. The ‘DH’ in its designation refers to the DH Series, known for its compact size, robust construction, and reliable signal integrity. The ’37S’ indicates its configuration as a 37-position (pin) receptacle (socket) connector, specifically designed to mate with a corresponding plug, creating a secure and stable electrical connection.

This particular connector is a testament to HRS’s commitment to quality and innovation in electronic components. Its primary function is to enable the secure and precise transmission of multiple signals or power lines within complex electronic systems. The choice of 37 positions is often ideal for applications requiring a significant number of I/O connections in a space-constrained environment, offering a balance between density and ease of handling.

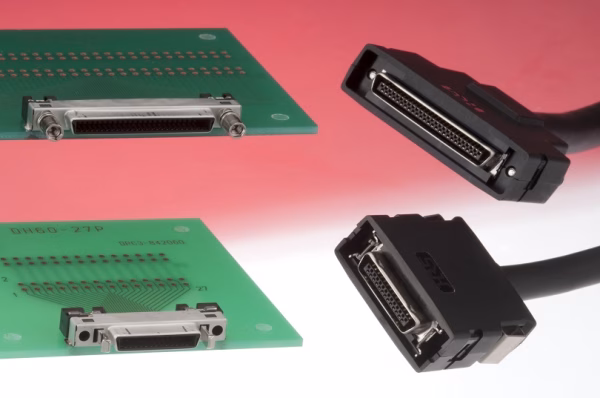

Understanding the context of the DH Series Connectors helps appreciate the DH30B-37S. This series often features variations in pin count, gender, and mounting styles, providing flexibility for designers. The DH30B-37S, as a receptacle, is typically mounted on a panel or PCB, ready to receive its counterpart, forming a vital link in the electronic chain.

3. Key Features and Technical Specifications

The strength of the DH30B-37S lies in its meticulously engineered features and robust specifications, which make it a go-to choice for critical applications. Referencing the datasheet, we can outline some of its most compelling attributes:

• High Pin Count:The 37 positions allow for extensive signal routing in a single compact connector, reducing the need for multiple smaller connectors and simplifying wiring.
• Robust Construction:Designed to withstand harsh environments, the connector often features durable housing materials that protect against mechanical stress and environmental factors.
• Secure Mating Mechanism:Many HRS Connectors, including those in the DH Series, employ positive locking mechanisms, such as screw-lock or latching, to ensure a stable and vibration-resistant connection, crucial for mobile or high-vibration applications.
• High Reliability:Gold-plated contacts are typically used to ensure low contact resistance and excellent long-term reliability, preventing signal degradation over time.
• Operating Temperature Range:A wide operating temperature range typically allows for use in industrial settings where temperature fluctuations are common.

Technical Specification Table of DH30B-37S

To provide a clear understanding of its capabilities, here’s a summary of key technical specifications for the DH30B-37S:

These specifications underscore why the DH30B-37S is considered a robust and reliable electronic part, capable of performing consistently in demanding scenarios. Designers looking for dependable HRS Connectors will find these details reassuring.

4. Design Excellence: Why DH30B-37S Stands Out

The design philosophy behind the DH Series Connectors, and specifically the DH30B-37S, focuses on a blend of compactness, durability, and ease of use. This 37 Position Receptacle Connector is engineered to optimize space while maintaining high performance, a critical requirement for many modern electronic components.

Compact Footprint

One of the primary advantages of the DH30B-37S is its relatively small form factor for a 37-pin connector. This enables engineers to create more compact designs, an ever-growing necessity in industries ranging from portable medical devices to industrial control panels where space is at a premium. The efficient arrangement of pins within the housing contributes significantly to this space-saving design.

Polarization and Mis-mating Prevention

To prevent incorrect connections, which can lead to system damage or malfunction, HRS Connectors often incorporate polarization features. The DH30B-37S typically includes keying or unique housing shapes that ensure it can only be mated in the correct orientation. This simple yet critical design element enhances reliability and simplifies assembly during manufacturing and field service.

Ease of Assembly and Maintenance

While robust, the design also considers ease of assembly. The receptacles are often designed for straightforward panel mounting or PCB mounting (through-hole or SMT, depending on the variant). This facilitates efficient manufacturing processes. Furthermore, the clear pin assignments (often marked) aid in wiring and troubleshooting, simplifying maintenance down the line. The availability of crimp contacts for wires also means field repairability in some configurations.

5. Versatile Applications of the 37-Position Receptacle

The robust features and reliable performance of the DH30B-37S make it suitable for a wide array of industries and applications where secure, multi-signal connections are paramount. Its ability to handle 37 distinct circuits in a single unit makes it invaluable for complex systems.

• Industrial Automation and Robotics:In factories and manufacturing plants, the DH30B-37S is often found in control panels, programmable logic controllers (PLCs), and robotic systems. It facilitates the connection of sensors, actuators, and communication lines, ensuring precise and uninterrupted operation. The high vibration resistance of HRS Connectors is particularly beneficial here.
• Medical Devices:From diagnostic equipment to patient monitoring systems, medical applications demand absolute reliability and safety. The DH30B-37Scan be used in connecting various modules within medical devices, transmitting critical data and power while adhering to stringent industry standards.
• Telecommunications Equipment:Data communication infrastructure, including base stations, network switches, and data center equipment, often relies on high-density connectors for signal routing. The DH30B-37S provides a compact and reliable solution for managing numerous data and control lines.
• Test and Measurement Equipment:Precision is key in test and measurement. This 37 Position Receptacle Connector is frequently employed in oscilloscopes, spectrum analyzers, and other testing apparatus where accurate and stable connections are essential for obtaining valid readings.
• Broadcast and Audio-Visual Equipment:Professional AV systems require numerous connections for video, audio, and control signals. The DH30B-37S offers a compact way to consolidate these connections, simplifying setup and improving reliability in demanding live or studio environments.
• Aerospace and Defense:While often requiring specialized versions, the general reliability and robust nature of the DH Series Connectors make them suitable for less extreme aerospace and defense applications where shock and vibration resistance are critical.

Across these diverse sectors, the DH30B-37S proves its worth as an indispensable electronic part, reliably connecting vital circuits and data paths, highlighting the importance of robust electronic components.

6. Advantages of Choosing DH Series Connectors from HRS

Beyond the specific attributes of the DH30B-37S, choosing HRS Connectors, and specifically those from the DH Series Connectors, brings several overarching benefits that resonate with engineers and product developers alike.

• Unwavering Quality and Reliability:HRS has built a global reputation for manufacturing high-quality electronic parts. Their rigorous testing and quality control processes ensure that each DH30B-37S meets stringent performance standards, leading to fewer failures and higher system uptime.
• Innovation and Expertise:With decades of experience, HRS continuously innovates, incorporating new materials and design principles to enhance connector performance. The DH Series Connectors are a product of this expertise, offering advanced features for modern electronic demands.
• Broad Product Portfolio:While we focus on the DH30B-37S, the DH Series offers a range of pin counts and configurations, allowing designers to standardize on a familiar and reliable platform for various connection needs. This simplifies supply chains and reduces design complexities.
• Global Support and Availability:As a major global manufacturer, HRS provides extensive technical support and ensures widespread availability of its electronic components. This is crucial for large-scale production and for securing critical electronic parts for ongoing projects.
• Compliance and Standards:HRS Connectors typically adhere to relevant international industry standards (e.g., RoHS, UL/CSA), which is essential for global market access and product safety.

By opting for the DH30B-37S, you’re not just getting a 37 Position Receptacle Connector; you’re investing in the reputation and proven track record of one of the industry’s leading manufacturers of electronic components.

7. Installation Best Practices and Maintenance Tips

Even the most robust electronic parts like the DH30B-37S require proper handling and installation to ensure their longevity and optimal performance. Following best practices can significantly extend the operational life of these critical HRS Connectors.

1) Installation Best Practices

• Refer to Datasheet:Always consult the official HRS datasheet for specific mounting instructions, torque specifications for screws (if applicable), and recommended wire gauges.
• Proper Wire Preparation:For crimp contacts, ensure wires are stripped to the correct length and crimped using the manufacturer-recommended tool. Incorrect crimping is a common cause of intermittent connections.
• ESD Precautions:Handle all electronic components, including the DH30B-37S, with appropriate Electrostatic Discharge (ESD) precautions to prevent damage to sensitive internal circuitry.
• Mechanical Alignment:When mating the 37 Position Receptacle Connector with its plug, ensure perfect alignment to prevent bent pins. Never force a connection. Listen for the positive click or observe the secure engagement of the locking mechanism.
• Strain Relief:Implement proper strain relief for cables connected to the DH30B-37S to prevent stress on the contacts and solder joints. This is vital for applications subject to vibration or movement.

2) Maintenance Tips

• Regular Inspection:Periodically inspect connections for signs of wear, corrosion, or damage. Discoloration, loose connections, or exposed wiring can indicate potential
• Cleaning:If operating in dusty or dirty environments, connectors may accumulate debris. Use appropriate, non-conductive cleaning agents and methods (e.g., compressed air, lint-free swabs with isopropyl alcohol) to clean the contact areas. Ensure the connector is fully dry before re-mating.
• Avoid Harsh Chemicals:Do not use abrasive cleaners or harsh solvents that could damage the connector housing or contact plating.
• Secure Fasteners:For screw-lock variants of the DH Series Connectors, ensure mounting screws and coupling screws are tightened to the specified torque to maintain a secure connection.

By adhering to these simple yet effective guidelines, the longevity and high performance of your DH30B-37S and the entire electronic system can be ensured, reaffirming the value of quality electronic parts.

8. HRS Connectors FAQs

9. Summary: The Enduring Value of DH30B-37S

The DH30B-37S from Hirose Electric stands as a testament to the critical role that high-quality electronic components play in the functionality and reliability of modern electronic systems. As a robust 37 Position Receptacle Connector within the acclaimed DH Series Connectors, it embodies precision engineering, durable construction, and versatile application potential. From the intricate demands of industrial automation to the critical precision of medical devices, this electronic part consistently delivers secure and stable connections, ensuring the seamless flow of data and power.

By choosing the DH30B-37S, engineers and designers benefit from HRS’s legacy of excellence, enjoying not only a reliable connector but also the assurance of extensive technical support and adherence to stringent quality standards. Understanding its features, proper installation, and maintenance best practices are key to unlocking its full potential and ensuring the long-term integrity of any electronic design. In a world increasingly reliant on complex electronic infrastructure, the unsung hero like the DH30B-37S remains an indispensable foundation for innovation and reliability.

Key Takeaways

• TheDH30B-37S is a high-density, 37-position receptacle connector from HRS’s robust DH Series.
• It offers superior reliability,signal integrity, and durability, critical for demanding electronic applications.
• Key specifications include a 1A current rating per contact, 250V voltage rating, and a wide operating temperature range (-55°C to 85°C).
• Its design features polarization for mis-mating prevention and a compact footprint, essential for modernelectronic components.
• The connector is widely used in industrial automation, medical devices,telecommunications, and test/measurement equipment due to its versatility.
• Proper installation and regular maintenance are crucial for maximizing the lifespan and performance of this vitalelectronic part.

1. Introduction: The Unsung Heroes of Connectivity

In the intricate world of electronics, reliable connections are not just a luxury but a fundamental necessity. Every circuit, every signal, every power transfer hinges on the quality and integrity of its connectors. Among the myriad of options available, the DH-37-CMB(8.8) from HRS stands out as a robust and dependable solution, particularly for demanding applications where performance cannot be compromised.

This comprehensive guide delves deep into the specifics of the DH-37-CMB(8.8) connector cable clamp, demystifying its nomenclature, technical attributes, and the critical role it plays in various electronic systems. Whether you’re an engineer, a technician, or a procurement specialist, understanding the nuances of this specific electronic parts is crucial for ensuring seamless and durable connectivity in your designs. We’ll explore why its D-shaped connector design is advantageous, how its integrated cable clamp enhances performance, and what makes it a preferred choice in the industry.

2. Understanding the DH-37-CMB(8.8) Connector Cable Clamp

The DH-37-CMB(8.8) is more than just a part number; it’s a detailed descriptor of a highly engineered component within the extensive HRS Connectors portfolio. Let’s break down what each segment of this designation signifies:

• DH Series Connectors:This prefix identifies the connector as part of Hirose’s renowned DH series, known for its robust construction, high reliability, and versatility, especially in D-Subminiature (D-Sub) applications.
• 37:This number indicates the contact count or number of positions. In this case, the DH-37 is a 37-pin connector, offering a substantial number of connections for complex data or control signals.
• CMB:This suffix usually refers to the connector’s body type or specific features. ForD-Sub connectors, ‘CMB’ often points to a “Cable Mount, Male, Backshell” integrated design, emphasizing its role as a male connector designed for cable
• (8.8):Thecrucial numerical suffix in parentheses, (8.8), typically specifies the maximum cable outer diameter (O.D.) that the integrated cable clamp can An 8.8mm cable clamp ensures compatibility with a broad range of standard and specialized cables, providing excellent strain relief and maintaining signal integrity.

In essence, the DH-37-CMB(8.8) is a 37-position D-shaped male connector cable clamp from the HRS DH series, featuring an integrated cable clamp designed to securely grip cables with an outer diameter up to 8.8mm. Its D-shaped profile ensures proper orientation during mating, preventing mismating and protecting the pins.

3. Key Features & Technical Specifications

The engineering behind the DH-37-CMB(8.8) is geared towards delivering optimal performance and longevity. Drawing from standard specifications typical for such a high-quality connector, here are its standout features and technical data:

The integrated Connector Cable Clamp For D-Sub Connectors is a critical feature, directly addressing common issues like cable pull-out and bending stress near the termination points. This thoughtful design contributes significantly to the overall reliability and lifespan of the entire cable assembly.

4. Why Choose the DH-37-CMB(8.8)?

Selecting the right connector is paramount for the success of any electronic system. The DH-37-CMB(8.8) offers a compelling set of advantages:

• Exceptional Reliability:As part of the HRS Connectors family, this component benefits from Hirose’s stringent quality control and precision manufacturing. This translates into stable electrical connections, minimizing signal loss and intermittent failures.
• Robust Construction:The use of durable materials like nickel-plated steel for the shell and gold-plated copper alloy for contacts ensures resistance against environmental factors, mechanical stress, and oxidation, contributing to its long operational life.
• Superior Strain Relief:The integrated 8.8mm cable clamp provides excellent protection against cable bending and pulling forces, which are common causes of failure in less robust designs. This is crucial for applications involving frequent movement or harsh environments.
• EMI/RFI Shielding:The metallic shell and appropriate grounding through D-shaped connector backshells offer significant shielding against electromagnetic interference (EMI) and radio-frequency interference (RFI), maintaining signal integrity in noisy environments.
• Preventative Mismating:The characteristic D-shaped connector design ensures correct mating orientation, preventing accidental damage to pins and ensuring proper electrical connections every time.
• Versatility:Its 37-pin configuration makes it suitable for applications requiring multiple signal lines, offering a balance between density and ease of handling compared to higher-pin-count connectors.

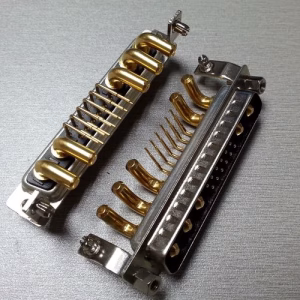

5. Versatile Applications of D-Shaped Connectors

Given its robust design and reliable performance, the DH-37-CMB(8.8) and matching D-shaped connectors find homes in a wide array of industries:

• Industrial Automation:Connecting sensors, actuators, and control modules in factory settings where vibrations, dust, and electrical noise are common.
• Telecommunications:Used in networking equipment, data transmission units, and various communication infrastructure components.
• Medical Devices:Critical for diagnostic equipment, patient monitoring systems, and other sensitive instruments where data integrity and reliability are non-negotiable.
• Test and Measurement Equipment:Providing precise and repeatable connections for laboratory instruments, data loggers, and test benches.
• Computing and Peripherals:Though modern computing has moved to smaller form factors, D-Sub connectors like the 37-pin version are still prevalent in legacy systems, industrial PCs, and specialized interface cards.
• Aerospace and Defense:Applications requiring high reliability and resistance to extreme temperatures and vibrations often specify connectors from reputable manufacturers like HRS.

The prevalence of D-shaped connectors across such diverse sectors is a testament to their enduring design and proven performance, making them indispensable electronic parts.

6. Installation and Compatibility: Maximizing Performance

Proper installation is key to harnessing the full potential of the DH-37-CMB(8.8). While the connector itself is robust, pairing it with the correct accessories and techniques ensures optimal performance and longevity:

6.1 The Role of the Integrated Cable Clamp

The (8.8) in DH-37-CMB(8.8) signifies the integrated cable clamp’s capability. When assembling, ensure your cable’s outer diameter falls within the specified range (typically
up to 8.8mm for this model) to ensure a snug and secure fit. A properly clamped cable prevents:

• Strain on Solder Joints:Reduces the risk of wire breakage or solder joint fatigue at the termination points.
• Cable Slippage:Stops the cable from being pulled out of the connector body under
• Improved Shielding:When combined with a metallic d-shaped connector backshells, the cable clamp can help maintain the integrity of the cable’s shield, further reducing EMI/RFI.

6.2 Selecting Compatible D-Shaped Connector Backshells

While the ‘CMB’ in the part number often implies some form of integrated backshell, for enhanced environmental protection, additional robust D-shaped connector backshells are often used. These backshells are crucial for:

• Environmental Protection:Shielding the termination area from dust, moisture, and chemical exposure.
• Enhanced EMI/RFI Shielding:Completing the shield continuity from the cable to the connector, especially important in noisy industrial settings.
• Mechanical Protection:Providing an extra layer of defense against impact and crushing forces.

Always ensure that any additional backshells are compatible with the DH-37-CMB(8.8)’s shell size (DE-37) and design to ensure a perfect fit and full functionality. Hirose offers a range of complementary accessories designed to work seamlessly with their DH Series Connectors.

7. The HRS DH Series: A Legacy of Quality

The DH-37-CMB(8.8) is a prime example of Hirose’s commitment to innovation and quality within their DH Series Connectors. Hirose (HRS) has long been a global leader in connector manufacturing, known for:

• Precision Engineering:Every HRS Connectors product is designed with meticulous attention to detail, ensuring reliable performance even in the most demanding applications.
• Extensive Portfolio:The DH series offers a wide range of D-Sub connectors, including various pin counts, genders, and mounting styles, providing solutions for diverse connectivity needs.
• Industry Standards Adherence:HRS products are consistently manufactured to meet or exceed relevant industry standards, guaranteeing interoperability and peace of mind.
• Customer Support and Innovation:Hirose continually invests in R&D to develop new connector technologies and provides excellent support to its customers, making them a trusted partner for critical electronic

Choosing a connector from the HRS DH Series means investing in proven reliability, robust design, and a legacy of engineering excellence.

8. HRS Connector FAQs

9. Summary

The DH-37-CMB(8.8) from Hirose is a prime example of a meticulously engineered D-shaped connector cable clamp designed for high reliability and demanding applications. As a 37-position male connector with an integrated 8.8mm cable clamp, it provides robust connectivity, superior strain relief, and excellent EMI/RFI shielding, especially when paired with compatible D-shaped connector backshells. Its presence in critical electronic parts for industrial, medical, and telecommunications sectors underscores its proven performance and the enduring quality of HRS Connectors. Understanding its specific features and proper application ensures that your electronic systems benefit from stable, long-lasting connections, solidifying its role as an indispensable component in today’s technology landscape.

Key Takeaways

• The DH-37-CMB(8.8) is a 37-position D-Sub male connector from the HRS DH series, engineered for high
• The (8.8) denotes an integrated cable clamp capable of securely gripping cables up to 8.8mm in outer diameter, providing essential strain relief.
• D-shaped connectors offer polarization,preventing mismating, and facilitate robust EMI/RFI shielding with proper D-shaped connector backshells.
• Its robust construction, including nickel-plated shells and gold-plated contacts,ensures durability and stable electrical performance in harsh environments.
• The DH-37-CMB(8.8) is widely used across industrial, medical, andtelecommunications applications due to its consistent quality and reliability.

Introduction

Surface finishes are crucial in PCB production. They guarantee peak performance and shield exposed copper traces. These finishes are a barrier to oxidation, and they facilitate soldering connections that are reliable. They have a direct impact on the longevity and performance of electronic gadgets. Two common surface finishes have arisen as a result of their distinct benefits and drawbacks: Electroless Nickel Immersion Gold (ENIG) and Hot Air Solder Level (HASL).

The HASL method involves submerging the PCB into molten silver, followed by a step of hot air drying. In contrast, ENIG entails putting a small coating of gold after a nickel layer. A careful choice between HASL and ENIG can have a significant impact on the solderability, shelf-life, and overall reliability of a Printed Circuit Board.

AssemblePCB provides expert services for PCBA. This covers the application and choice of various surface finishes, such as Electroless Nickel Infusion Gold (ENIG), Hot Air Solder Leveling (HASL), or advice on which finish is ideal.

1. HASL VS ENIG–HALL

1.1 Definition

Hot Air Solder Leveling (HASL) is commonly abbreviated as ‘HASL’. This is a surface finish that’s used in the printed circuit board industry to provide a long shelf life as well as a reliable solder joint. hot air soldering leveling makes it easier to solder a component. Initially, HASL is applied as a finish to improve solderability. It also covers exposed copper circuitry.

HASL VS ENIG – HASL

1.2 HASL Finished

The HASL has been a popular surface finish for many years, with advantages such as low cost, repairability, and availability.

As we have discussed, HASL offers a surface finish that is solderable and has a long shelf life. The printed circuit boards are submerged in a container of molten metal solder to coat the copper surfaces during the HASL process.

Then, using the hot air knife to level the circuit board and remove excess solder. The printed circuit boards must be covered or the copper will oxidize, making the board useless.

Copper finishes are found on the printed board. This finish creates an interface between the printed board and the component.

2. HASL VS ENIG–ENIG

2.1 Definition

The ENIG acronym stands for Electroless Nickel Infusion Gold. Because it is composed of electroless nickel plating with a thin coating of immersion gold, the ENIG gets its name. Hot air solder leveling is a surface finishing used in the printed circuit boards industry. It has consistently gained market share due to its flexibility in different component assembly processes.

HASL VS ENIG – ENIG

2.2 ENIG Finish

The two-layer finish is a metallic coating consisting of an electroless layer that is coated with immersion gold. During storage, the nickel serves as a barrier for the copper, and the immersion gold shields it. ENIG has become one of the most popular surface treatments in the printed circuit board industry due to its advantages.

2.3 ENIG Plating

In the early stages, ENIG plating is not reliable. This type of leaf has reliability problems. Electroless immersion nickel-gold is not uniformly wetted, unlike hot air solder leveling. The copper pads have been separated from the finish as a result. The nickel ions in the reducing agent must be replaced to ensure the coating is at the right temperature and concentration.

3. Advantages and Disadvantages of HASL and ENIG

We have already discussed the two finishes. In essence, hot air solder leveling (HASL) possesses certain distinct advantages over electroless nickel immersion gold (ENIG), and the reverse is also true. In this, section we will describe each surface finish and its advantages and disadvantages. Note that there is no surface finish without its disadvantages. Therefore, choosing a surface finish depends on the application.

3.1 Advantages of the HASL

Hot air solder uniform process type HASL is widely used on the surface of printed circuit boards in the PCB Industry. Its use has many advantages:

• The printed circuit board can be exposed to temperatures as high as 265°C. Before any components are attached to the printed circuit board, any potential issues can be found by exposing it to this degree of weather.
• It is easy to operate the hot air solder leveling.
• This is a surface finish which is affordable.
• hot air solder leveling has a reputation for offering a long-lasting storage life.
• It is widely available. It is a great alternative to other surface finishes.
• A flawless wetting during the soldering or connecting of components.
• The components must be wetted perfectly before joining or soldering.
• Visual inspection is possible for this type of surface finish.

Multi-Layer PCB with HASL

3.1.2 Disadvantages of the HASL

According to one viewpoint, every benefit is always connected to a disadvantage. Every kind of surface finish has advantages and disadvantages. Among the flaws in the hot air solder leveling that have been found are:

1. Because hot air solder leveling involves uneven surfaces, this kind of surface finish is not appropriate for Surface-mount technology (SMT).
2. In keeping with the first point, it is not eligible for fine pitch. In order to improve flatness, horizontal levelers are necessary.
3. HASL has some limitations that make it unsuitable for manufacturing when it comes to boards that are also thick or thin.
4. Due to the high temperatures involved in their production, printed circuit boards can suffer from some disadvantages.
5. unable to tolerate the plated holes’ strict tolerance.
6. Line binding is not suitable for hot air soldering leveling.
7. Using this surface finish at high temperatures may cause the plated through holes to break.

3.2 Advantages of the ENIG

• The electroless nickel immersion gold provides a flat surface in contrast to the hot air solder leveling method.
• This type of surface finish is well-suited for plated through holes.
• Similar to hot air solder leveling, it has a long shelf life.
• No lead
• This surface finish can be used as the bottom metal of cob wire.
• ENIG exhibits exceptional electrical conductivity.
• Electroless nickel immersion gold (ENIG) is well recognized for its resistance to oxidation.

Electroless Nickel Immersion Gold Surface Finish

3.2.1 Disadvantages of the ENIG

1. The cost is a major issue.
2. In contrast to hot air solder leveling (HASL), electroless nickel immersion gold (ENIG) is not amenable to rework.
3. Signal loss is a problem with electroless nickel immersion gold
4. ENIG is more complex than HASL.
5. ENIG’s low strength makes it vulnerable to the black pad

4. Other Surface Finish Process

4.1 OSP

OSP stands for Organic Solderability Preservative. Also known as anti-tarnish, the organic solderability preserver is an organic preservative. This surface finish protects copper’s surface from oxidation. This is achieved by applying a thin layer of material to the copper surface using a specific process. This finish is made with organic compounds, usually water-based, that bond to the copper. The result is a metallic and organic layer that protects the copper before soldering.

Organic Solderability Preservative

4.1.1 Advantages of OSP

• In contrast to hot air solder leveling (HASL), organic soldering preservatives deliver a flat surface.
• The process involved in organic soldering preservatives is comparatively straightforward.
• It allows for rework.
• It guarantees an extremely smooth surface.
• It serves as an excellent option for surface mount technology (SMT).
• It is well-suited for lead-free soldering processes.
• This type of finish is economical.
• It ranks as a top choice for horizontal production lines.
• It presents no hazard to the environment.
• It can be combined with other surface finish types on a single panel.

4.1.2 Disadvantages of OSP

1. After multiple soldering cycles, the film becomes damaged.
2. It is unsuitable for electrical measurements.
3. It is incompatible with plated through holes.
4. Unlike the aforementioned surface finishes, OSP has a short storage or shelf life.
5. It demands careful handling.
6. Its thickness cannot be measured.
7. It has strict storage condition requirements.

4.2 HARD ELECTROLYTIC GOLD

This type is composed of a gold sheet that has been coated with a nickel barrier coat. This type is only known as “hard-gold.” The majority of its applications are commonly found in keypads, connector fingers, and other areas. Its ability to vary in thickness is one of its main advantages over electroless nickel immersion (ENIG). Hard gold is generally expensive and has a low soldering capability.

Printed Circuit Board (PCB) with GOLD

4.2.1 Advantages of hard gold

• It is a durable and reliable surface.
• Storage life of hard gold is good
• No lead

4.2.2 Disadvantages of hard gold

1. This surface finish type is expensive.
2. It calls for extra processing steps.
3. Etching damage may lead to flaking.
4. Hard gold utilizes resist materials.
5. It has soldering limitations: it cannot be soldered beyond 17µin.
6. Aside from finger areas, this finish does not encapsulate trace sidewalls.

4.3 IMMERSION TIN

This is a metallic finish applied directly to the metal on the printed circuit boards. It is a metallic finish that prevents oxidation and has a long storage life. We’ll take a look at some of the benefits and drawbacks associated with immersion tin.

4.3.1 Advantages of the immersion in

• The immersion tin can be reworked
• Press-fit pins can be inserted easily with this product.
• The immersion tin is free of lead
• It provides a flat surface

4.3.2 Disadvantages of the immersion in

1. It is not an appropriate option for assembly processes.
2. Measuring its thickness is somewhat unfeasible.
3. Uncovered tin tends to corrode during the final assembly stage.
4. This method utilizes agents or substances with carcinogenic properties.
5. It tends to incur processing damage rapidly.

4.4 IMMERSION SILVER

Immersion silver has pros and cons when compared with other surface finishes. In some cases, it’s considered to be a superior surface finish.

4.4.1 Benefits of Immersion Silver

• The associated process is straightforward.
• Immersion silver provides a flat surface.
• Immersion silver stands as a top choice for high-quality traces.
• It is cost-effective.

4.4.2 Disadvantages of immersion silver

1. There may be some micro-hole problems
2. The water can easily be polluted

4.5 NICKEL PALLADIUM (ENEPIG)

From a historical perspective, ENEPIG is not a particularly long-established surface finish process within the PCB industry. Typically, ENEPIG is widely used in the semiconductor sector, and it is also applied to the combination of aluminum and gold.

Printed Circuit Board PCB with ENEPIG

4.5.1 Advantages of ENEPIG

• Unlike electroless nickel immersion gold (ENIG), it does not have the black plate issue—meaning there is no nickel corrosion.
• It is an excellent option for lead-free soldering processes.
• ENEPIG boasts a favorable shelf life.
• It is an ideal choice for gold wire bonding.
• It is more cost-effective compared to electroless nickel immersion gold (ENIG).
• It is suitable for a wide range of surface finishes.

4.5.2 Disadvantages to ENEPIG

1. Its function is complex, unlike some of the other processes that were mentioned.
2. This type of process is still relatively new and has not been well established.

5. Conclusion

Merge Your Plans

While several options have been discussed, the cost of each has not been excluded from consideration. One aspect involves planning to use a surface finish, and another entails carefully selecting the appropriate type that is perfectly suited to your project. For your benefit, it is advisable to assess your project first before determining which surface finish to adopt. If you are working with a limited budget, opting for a surface finish like hot air solder leveling (HASL) is recommended; however, if you choose HASL, you must keep in mind that it is not suitable for RoHS-compliant products.

It’s time

We’ve shown you some common surface finishes, along with the benefits and drawbacks of each. We can guide you to the end of this project, which we have begun. We are available 24/7 to help you. Contact us today! We’d love to hear from you. You can also request a quote, and please do not hesitate to send us any questions or concerns.
