Images
|
Mfr.Part #
|
In Stock
|
Manufacturer
|
Description
|
Package
|
|---|---|---|---|---|---|
|

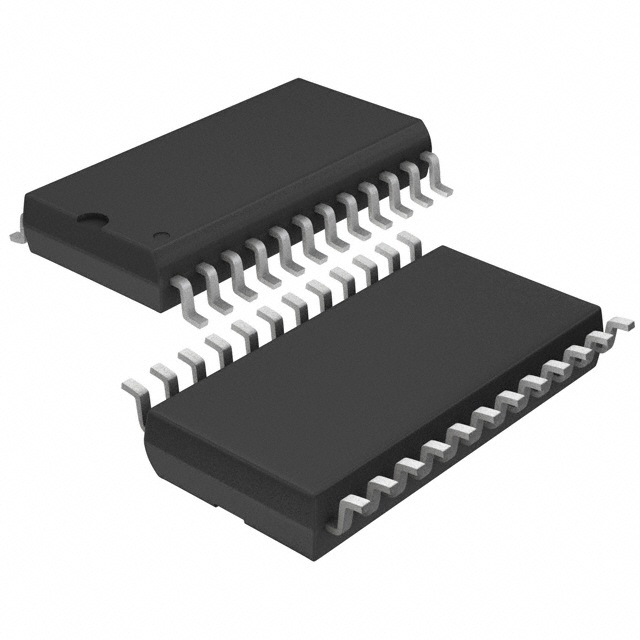

XRD9827ACD-F | 21814 | MaxLinear, Inc. | IC AFE 3 CHAN 12BIT 20SOIC | 20-SOIC (0.295", 7.50mm Width) |
|
ISL98003CNZ-165 | 58108 | Renesas Electronics America Inc | IC AFE 3 CHAN 8BIT 80TQFP | 80-TQFP Exposed Pad |
|
XRD9818ACGTR-F | 29874 | MaxLinear, Inc. | IC AFE 3 CHAN 16BIT 28TSSOP | 28-TSSOP (0.173", 4.40mm Width) |
|
ISL98002CRZ-140 | 89756 | Renesas Electronics America Inc | IC AFE 3 CHAN 8BIT 72QFN | 72-VFQFN Exposed Pad |
|
73M1903-IMR/F | 95643 | Analog Devices Inc./Maxim Integrated | IC AFE 1 CHAN 16BIT 32QFN | 32-VFQFN Exposed Pad |
|
AD9877ABS | 50276 | Analog Devices Inc. | IC MXFE CABLE MODEM 100-MQFP | 100-BQFP |
|
TC510EOG713 | 68634 | Microchip Technology | IC AFE 1 CHAN 17BIT 24SOIC | 24-SOIC (0.295", 7.50mm Width) |
|
AD73322LARZ | 61200 | Analog Devices Inc. | IC AFE 2 CHAN 16BIT 28SOIC | 28-SOIC (0.295", 7.50mm Width) |
|
|
ISL98003CNZ-150 | 57747 | Renesas Electronics America Inc | IC AFE 3 CHAN 8BIT 80TQFP | 80-TQFP Exposed Pad |
|
MAX5863ETM+T | 58280 | Analog Devices Inc./Maxim Integrated | IC AFE 4 CHAN 8/10BIT 48TQFN | 48-WFQFN Exposed Pad |
|
AD9876ABST | 57214 | Analog Devices Inc. | IC 12BIT MODEM MXFE 48-LQFP | 48-LQFP |
|
|
AD9875BST | 31138 | Analog Devices Inc. | IC 10BIT MODEM MXFE 48-LQFP | 48-LQFP |
|
STLC7550TQF7TR | 16200 | STMicroelectronics | IC AFE 1 CHAN 16BIT 48TQFP | 48-LQFP |
|
|
AD73322LAR-REEL | 92928 | Analog Devices Inc. | IC ANALOG FRONT END DUAL 28-SOIC | 28-SOIC (0.295", 7.50mm Width) |
|
VSP2590ZWVR | 19989 | Texas Instruments | IC AFE 2 CHAN 16BIT 159NFBGA | 159-TFBGA |
|
MAX19710ETN+T | 8692 | Analog Devices Inc./Maxim Integrated | IC AFE 2 CHAN 10BIT 56TQFN | 56-WFQFN Exposed Pad |
|
|
MAX19712ETN+T | 59259 | Analog Devices Inc./Maxim Integrated | IC AFE 2 CHAN 10BIT 56TQFN | 56-WFQFN Exposed Pad |
|
AD73460BB-40 | 92458 | Analog Devices Inc. | IC ANALOG FRONT END 6CH 119-BGA | 119-BBGA |
|
AD73322LYRU | 89508 | Analog Devices Inc. | IC ANALOG FRONT END DUAL 28TSSOP | 28-TSSOP (0.173", 4.40mm Width) |
|
MAX1101CWG+T | 72895 | Analog Devices Inc./Maxim Integrated | IC AFE CCD DIGITZR 8BIT 24SOIC | 24-SOIC (0.295", 7.50mm Width) |
Analog Front End (AFE)
1. What is Analog Front End (AFE)?
Analog Front End (AFE) is a key component for processing analog signals in electronic systems. It is located between the sensor/signal source and the digital processor and is responsible for converting the original analog signal into a high-quality, processable digital signal. Its core function is to solve the problems of analog signals being susceptible to noise interference and low amplitude, and to provide a reliable input basis for digital systems.
2. What are the Core Functions of Analog Front End (AFE)?
1) Signal Conditioning
Amplification: Increase the amplitude of weak analog signals and enhance system sensitivity.
Filtering: Eliminate noise and interference through hardware or digital filtering to improve the signal-to-noise ratio.
2) Analog-to-Digital Conversion (ADC)
Built-in high-precision ADC discretizes the conditioned analog signal into a digital signal. The sampling rate directly affects the accuracy of signal restoration.
3) Preprocessing
Some AFEs integrate simple digital processing units (such as FFT and baseline correction) to reduce the burden on the main processor.
3. What are the Structural Features of Analog Front End (AFE)?
Highly Integrated
Amplifiers, filters, ADCs, reference voltage sources, excitation circuits, and other modules are integrated into a single chip to simplify system design.
Mixed Signal Architecture
Based on analog circuits, supplemented by a small amount of digital control logic (such as multiplexers and state machines).
Flexible Interface
Supports digital interfaces such as I²C and SPI (such as ISO-SPI for BMS daisy chain communication), compatible with various MCUs or processors.
4. What are Analog Front End (AFE) Used for?
Battery management system (BMS)
Collect cell voltage/temperature, and the accuracy directly affects SOC estimation.
Built-in passive balancing circuit to balance the battery pack through resistor discharge.
High-speed Communication Interface
Processes high-speed signal transmission and reception in protocols such as PCIe, and integrates equalizer (Equalizer) and clock data recovery (CDR) modules.
Precision Measurement System
Used in industrial sensors, medical equipment, etc., to achieve high-resolution acquisition of weak analog signals.
5. Key Parameters Selection for Analog Front End (AFE)
|
Parameter |
Description |
|
Resolution |
The number of ADC bits (such as 16bit), which determines the signal quantization accuracy |
|
Sampling Rate |
Affects the signal restoration capability and must meet the Nyquist theorem |
|
Power Consumption |
Especially critical for portable devices, related to the ADC architecture (Δ-Σ/pipeline type) |
|
Integrated Functions |
Such as built-in PGA (programmable gain amplifier), temperature sensor, reference source, etc. |
6. Development Trend of Analog Front End (AFE)
The new generation of AFE continues to evolve towards higher integration (such as MCU integration), lower power consumption (suitable for IoT devices), and intelligent signal processing (embedded AI pre-processing) to meet the needs of complex application scenarios.
