Images
Mfr.Part #
In Stock
Manufacturer
Description
Package
AD876JR AD876JR 15440 Analog Devices Inc. IC ADC 10BIT PIPELINED 28SOIC 28-SOIC (0.295", 7.50mm Width)
AD7705BN AD7705BN 28350 Analog Devices Inc. IC ADC 16BIT SIGMA-DELTA 16DIP 16-DIP (0.300", 7.62mm)
MAX173CNG MAX173CNG 26935 Analog Devices Inc./Maxim Integrated IC ADC 10BIT SAR 24DIP 24-DIP (0.300", 7.62mm)
AD7714YRU AD7714YRU 10699 Analog Devices Inc. IC ADC 24BIT SIGMA-DELTA 24TSSOP 24-TSSOP (0.173", 4.40mm Width)
AD7467BRM AD7467BRM 7739 Analog Devices Inc. IC ADC 10BIT 8MSOP 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
MAX172BCWG MAX172BCWG 3643 Analog Devices Inc./Maxim Integrated IC ADC 12BIT SAR 24SOIC 24-SOIC (0.295", 7.50mm Width)
AD976ABR AD976ABR 2084 Analog Devices Inc. IC ADC 16BIT SAR 28SOIC 28-SOIC (0.295", 7.50mm Width)

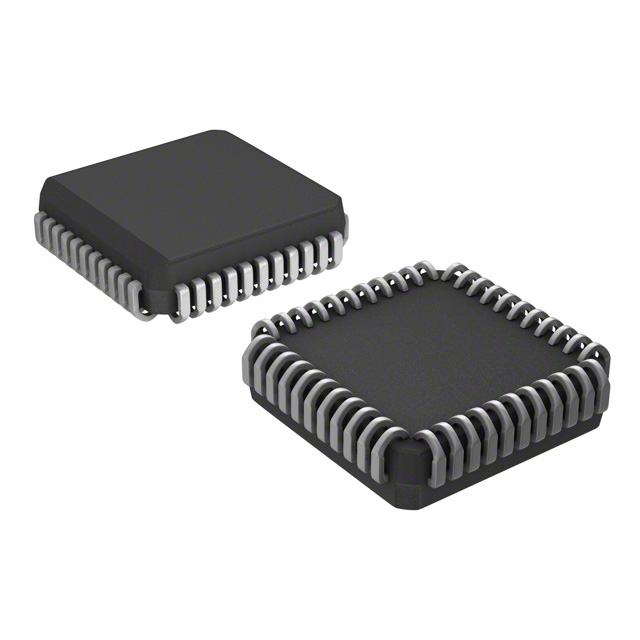

AD9058AJJ AD9058AJJ 7890 Analog Devices Inc. IC ADC 8BIT FLASH 44JLCC 44-CLCC (J-Lead)
AD9215BRU-65 AD9215BRU-65 21274 Analog Devices Inc. IC ADC 10BIT PIPELINED 28TSSOP 28-TSSOP (0.173", 4.40mm Width)
AD976AAN AD976AAN 23030 Analog Devices Inc. IC ADC 16BIT SAR 28DIP 28-DIP (0.600", 15.24mm)
MAX170DCWE MAX170DCWE 26077 Analog Devices Inc./Maxim Integrated IC ADC 12BIT SAR 16SOIC 16-SOIC (0.295", 7.50mm Width)
AD976ABRS AD976ABRS 25794 Analog Devices Inc. IC ADC 16BIT SAR 28SSOP 28-SSOP (0.209", 5.30mm Width)
MAX172AENG MAX172AENG 22654 Analog Devices Inc./Maxim Integrated IC ADC 12BIT SAR 24DIP 24-DIP (0.300", 7.62mm)
AD976AAR AD976AAR 28679 Analog Devices Inc. IC ADC 16BIT SAR 28SOIC 28-SOIC (0.295", 7.50mm Width)
MAX172BEWG MAX172BEWG 26836 Analog Devices Inc./Maxim Integrated IC ADC 12BIT SAR 24SOIC 24-SOIC (0.295", 7.50mm Width)
AD976AR AD976AR 12596 Analog Devices Inc. IC ADC 16BIT SAR 28SOIC 28-SOIC (0.295", 7.50mm Width)
AD7476AYRM AD7476AYRM 11626 Analog Devices Inc. IC ADC 12BIT 2.35V 1MSPS 8-MSOP 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
AD7715AR-5 AD7715AR-5 10624 Analog Devices Inc. IC ADC 16BIT SIGMA-DELTA 16SOIC 16-SOIC (0.295", 7.50mm Width)
AD7822BR AD7822BR 29627 Analog Devices Inc. IC ADC 8BIT PIPELINED 20SOIC 20-SOIC (0.295", 7.50mm Width)
AD7715AN-5 AD7715AN-5 15856 Analog Devices Inc. IC ADC 16BIT SIGMA-DELTA 16DIP 16-DIP (0.300", 7.62mm)

Analog to Digital Converters (ADC)

1. What are Analog to Digital Converters (ADC)?

‌Basic Definition

ADC (Analog-to-digital converter) is an electronic device that converts continuously changing analog signals (such as voltage and current) into discrete digital signals (binary code). It builds a bridge between the physical world (analog signal) and digital systems (processors, controllers).



‌Functional Significance

Digital systems (such as microprocessors) can only process binary signals (0/1), while the analog signals output by physical sensors (temperature, pressure, etc.) need to be converted into digital quantities through ADC before they can be recognized and processed by digital circuits.



2. How does Analog to Digital Converters (ADC) Work?

The conversion process of ADC includes four key steps:

‌Sampling‌: Collect the instantaneous value of the analog signal at fixed time intervals.

‌Holding‌: Hold the sampled value for a short time to ensure signal stability during conversion.

‌Quantization‌: Map the sampled value to a finite discrete level (determined by the resolution).

‌Encoding‌: Convert the quantized value to a binary digital output.



For example, a 4-bit ADC divides the analog voltage into 24=16 discrete levels and outputs a 4-bit binary code to represent the relative voltage value.



3. Key Performance Parameters of Analog to Digital Converters (ADC)

‌Resolution

The number of bits of the output digital quantity (such as 8 bits, or 12 bits) determines the minimum resolvable voltage (Vref/(2N−1)).



‌Sampling Rate

The number of samples per second (Hz), which must meet the Nyquist theorem (twice higher than the highest frequency of the signal).



‌Reference Voltage

The reference standard for conversion, the output digital quantity represents the ratio of the input signal to the reference voltage.



4. What are Analog to Digital Converters (ADC) Used for?

‌Automotive electronics‌: temperature/pressure sensor signal conversion to ECU (electronic control unit).

‌Medical Equipment‌: digital acquisition of physiological signals (such as electrocardiogram, blood pressure).

‌Industrial Control‌: real-time monitoring of analog quantities (flow, displacement) and feedback to digital systems.



5. What are the Types of Analog to Digital Converters (ADC)?

ADC types are diverse, including:

‌Successive Approximation Register (SAR) ‌: balance speed and accuracy.

‌Σ-Δ Type‌: high-resolution audio processing.

‌Pipeline Type‌: high-speed communication system.



ADC is the core interface device of modern electronic systems, and its performance directly affects the accuracy and efficiency of data acquisition.



6. Analog to Digital Converters (ADC) FAQs

1)‌How to reduce ADC errors? ‌

Use an external high-stability reference voltage source (instead of an internal reference);

Add hardware filtering (such as RC low-pass filtering) to reduce noise;

Optimize PCB layout: shorten signal routing and keep away from high-frequency interference sources;

Software calibration of offset/gain errors.



2) ‌What to do if the input signal amplitude is too small? ‌

The pre-gain amplifier (PGA) amplifies the signal to the ADC range and improves the effective resolution.



3) ‌How to avoid interference when acquiring multiple channels? ‌

Configure a reasonable sampling time (allow the signal to stabilize);

Use differential input mode to suppress common-mode noise.



4) ‌How to choose an ADC model? ‌

Resolution: The more subtle the change in sensor output, the higher the bit number required (e.g. 12 bits for temperature monitoring, 16 bits or more for audio acquisition);

Sampling Rate: Dynamic signals (e.g. audio) require MHz level, and low-speed sensors can be reduced to kSPS35.



5) ‌What is the performance of the built-in ADC of MCUs such as STM32? ‌

Most of them meet general requirements: 12-bit resolution, 1MSPS sampling rate, support for multi-channel scanning and calibration functions, and better cost performance than external ADC chips.
