Images
Mfr.Part #
In Stock
Manufacturer
Description
Package

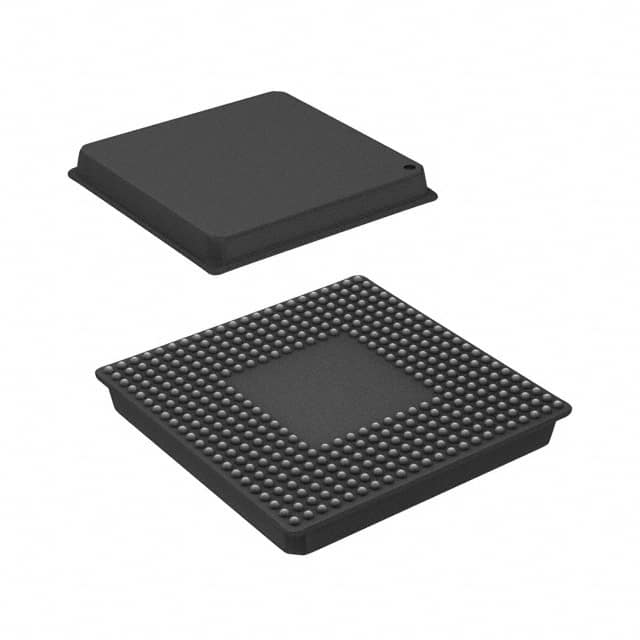

SM32C6416EGLZ50AEP SM32C6416EGLZ50AEP 18187 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
TMS320C6205DZHK200 TMS320C6205DZHK200 31160 Texas Instruments IC FIXED-POINT DSP 288-BGA 288-LFBGA
66AK2E05XABD25 66AK2E05XABD25 11167 Texas Instruments IC DSP ARM SOC 1089FCBGA 1089-BFBGA, FCBGA
TMS320C6204ZHKA200 TMS320C6204ZHKA200 8113 Texas Instruments IC FIXED-POINT DSP 288-BGA 288-LFBGA
SM32C6414DGLZ50AEP SM32C6414DGLZ50AEP 43520 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
SM32C6416DGLZ50AEP SM32C6416DGLZ50AEP 21968 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
DSP56303AG100R2 DSP56303AG100R2 15998 NXP USA Inc. IC DSP 24BIT 100MHZ 144-LQFP 144-LQFP
SM32C6416TGLZA8EP SM32C6416TGLZA8EP 20710 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
SM32C6416TGLZI1EP SM32C6416TGLZI1EP 13814 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
SM32VC5510AGGWA2EP SM32VC5510AGGWA2EP 37004 Texas Instruments IC DSP FIXED-POINT 240-BGA 240-LFBGA
TMS320C5420GGUA200 TMS320C5420GGUA200 8599 Texas Instruments IC DGTL SIGNL PROCESSOR 144-BGA 144-LFBGA
DSP56303AG100B1 DSP56303AG100B1 22523 NXP USA Inc. IC DSP 24BIT 100MHZ 144-LQFP 144-LQFP
TMS320C6204GHKA200 TMS320C6204GHKA200 9296 Texas Instruments IC FIXED-POINT DSP 288-BGA 288-LFBGA
DSP56301AG80B1 DSP56301AG80B1 8885 NXP USA Inc. IC DSP 24BIT 80MHZ GP 208-LQFP 208-LQFP
TMS320C6203BGNY17C TMS320C6203BGNY17C 44058 Texas Instruments IC FIXED-POINT DSP 384-BGA 384-FBGA, FCCSPBGA
SM32C6414EGLZ50AEP SM32C6414EGLZ50AEP 22896 Texas Instruments IC DSP FIXED-POINT 532-FCBGA 532-BFBGA, FCBGA
MSC8126MP8000 MSC8126MP8000 42335 NXP USA Inc. DSP 16BIT 500MHZ MULTI 431FCBGA 431-BFBGA, FCBGA
KMSC7119VF1200 KMSC7119VF1200 38699 NXP USA Inc. DSP 16BIT W/DDR CTRLR 400-MAPBGA 400-LFBGA
SM320VC5409GGU10EP SM320VC5409GGU10EP 24535 Texas Instruments IC DSP FIXED-POINT 144-BGA 144-LFBGA
TMS320DM6441ZWT TMS320DM6441ZWT 10882 Texas Instruments IC SOC DIGITAL MEDIA 361-BGA 361-LFBGA

DSP (Digital Signal Processors)

1. What are DSP (Digital Signal Processors)?‌

‌DSP (Digital Signal Processor)‌ is a microprocessor designed for high-speed digital signal processing algorithms. It performs filtering, compression, enhancement, and other operations by processing the digital sequence converted from analog signals in real-time. It is widely used in communications, medicine, consumer electronics, and other fields. Its essence is to process real signals in digital form to extract and convert information.



2. What are the ‌Core Hardware Features of DSP (Digital Signal Processors)?‌

‌Harvard Structure

The program and data storage space are independent, supporting parallel execution of instruction reading and data operations, significantly improving throughput efficiency.



‌Dedicated Hardware Acceleration Unit

Built-in hardware multiplier (MAC), single-cycle multiplication and addition operations, suitable for intensive calculations such as matrix operations and Fourier transforms.



Multi-address generator reduces memory access bottlenecks.



‌Pipeline Technology

Instructions are decomposed into multi-stage parallel processing such as instruction fetch, decoding, and execution to achieve efficient pipeline operations.



‌Low-latency Response

Fast interrupt processing and hardware I/O support to meet scenarios with high real-time requirements (such as industrial control).



3. What are the ‌Typical Application Scenarios of DSP (Digital Signal Processors)?‌

1) ‌Communications‌

Processing fiber dispersion and polarization interference in optical communications to achieve signal recovery and equalization.



2) ‌Consumer Electronics‌

Audio Processing: frequency division management, delay correction, and EQ adjustment of car audio (such as DSP amplifier);

Wearable Devices: For example, the ATS3085L chip of Actions Technology equipped with an Honor bracelet realizes health monitoring and low-power operation through MCU+DSP dual-core heterogeneous design.



3) ‌Embedded System‌

Combined with SBC (single-board computer) to enhance data processing capabilities, used for complex tasks such as aerospace and industrial control.



4) ‌Image and Automation‌

The advantages of floating-point operations and matrix processing are suitable for machine vision, motor control, etc.



4. ‌Technology Evolution and Trends of DSP (Digital Signal Processors)‌

‌Heterogeneous Integration‌: Modern DSPs are often combined with MCU/ARM cores (such as TI J6/J7), taking into account general computing and special processing capabilities.

‌Energy Efficiency Optimization‌: Low power consumption design promotes its penetration in the Internet of Things and wearable devices (such as Actions chip power consumption <150μA).



5. ‌Summary‌

DSP has become the core device of digital technology with its customized hardware architecture and real-time processing capabilities, covering all scenarios from high-end communication equipment to daily consumer electronics, and continuously promoting the innovation of signal processing technology.



6. DSP (Digital Signal Processors) FAQs

1) ‌How to deal with excessive power ripple? ‌

Adding capacitor filtering can effectively suppress power ripple while ensuring that the reference power supply and analog power supply are pure.



2) ‌Is the external crystal oscillator active or passive? ‌

It is recommended to use a passive crystal rather than an active crystal oscillator to ensure clock stability.



3) ‌Multi-DSP system clock synchronization solution? ‌

Use a dedicated clock chip to unify the clock source to avoid timing confusion.



4) ‌A/D conversion accuracy assurance measures? ‌

It is necessary to independently purify the analog power supply and reference power supply to reduce noise interference.
