Analog to Digital Converters (ADC)

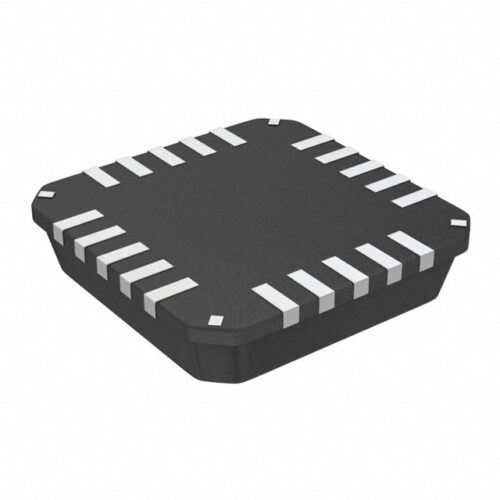

AD9253BCPZRL7-125

Manufacturer

Analog Devices Inc.
Category

Analog to Digital Converters (ADC)
Mfr. Part #

AD9253BCPZRL7-125
Description

IC ADC 14BIT PIPELINED 48LFCSP
Details Description

14 Bit Analog to Digital Converter 4 Input 4 Pipelined 48-LFCSP (7×7)
Package

48-WFQFN Exposed Pad, CSP
In Stock

9691

Datasheet: datasheet

Contact us

WhatsApp: +86-18123905375

Wechat: +86-18123905375

Email: [email protected]

Mfr
Analog Devices Inc.
Series
–
Package
Tape & Reel (TR)
Product Status
Active
Number of Bits
14
Sampling Rate (Per Second)
125M
Number of Inputs
4
Input Type
Differential
Data Interface
LVDS – Serial
Configuration
S/H-ADC
Ratio – S/H:ADC
1:1
Number of A/D Converters
4
Architecture
Pipelined
Reference Type
Internal
Voltage – Supply, Analog
1.7V ~ 1.9V
Voltage – Supply, Digital
1.7V ~ 1.9V
Features
Simultaneous Sampling
Operating Temperature
-40°C ~ 85°C
Package / Case
48-WFQFN Exposed Pad, CSP
Supplier Device Package
48-LFCSP (7×7)
Mounting Type
Surface Mount
Base Product Number
AD9253
