Images
|
Mfr.Part #
|
In Stock
|
Manufacturer
|
Description
|
Package
|
|---|---|---|---|---|---|
|
EPM7256EGC192-20 | 48553 | Altera | EE PLD, 20NS, 256-CELL, CMOS, CP | 208-BFQFP Exposed Pad |
|
|
EPM3032ATI44-10 | 44568 | Altera | EE PLD, 10NS, 32-CELL, CMOS, PQF | 44-TQFP |
|
|
EPM3128ATC144-10 | 7740 | Altera | EE PLD, 10NS, 128-CELL, CMOS, PQ | 144-LQFP |
|
|
EPM3256ATI144-10 | 12525 | Altera | EE PLD, 10NS, 256-CELL, CMOS, PQ | 144-LQFP |
|
|
EPM3256AQC208-7 | 57699 | Altera | EE PLD, 7.5NS, 256-CELL, CMOS, P | 208-BFQFP |
|
EPM570T144C5N | 48659 | Intel | IC CPLD 440MC 5.4NS 144TQFP | 144-LQFP |
|
LC4256V-5F256BC | 42531 | Lattice Semiconductor Corporation | IC CPLD 256MC 5NS 256FPBGA | 256-BGA |
|
XCR3256XL-10CSG280I | 35097 | AMD | IC CPLD 256MC 9.1NS 280CSBGA | 280-TFBGA, CSPBGA |
|
ISPLSI2128-100LQ | 41192 | Lattice Semiconductor Corporation | IC CPLD 128MC 10NS 160QFP | 160-BQFP |
|
|
EPM3512AQI208-10N | 7079 | Altera | CPLD - COMPLEX PROGRAMMABLE LOGI | 208-BFQFP |
|
|
EPM3064ATC100-10 | 14408 | Altera | EE PLD, 10NS, 64-CELL, CMOS, PQF | 100-TQFP |
|
|
EPM3512AFC256-10N | 48913 | Altera | EE PLD, 10NS, 512-CELL, CMOS, PB | 256-BGA |
|
LC4128B-75T100C | 30585 | Lattice Semiconductor Corporation | IC CPLD 128MC 7.5NS 100TQFP | 100-LQFP |
|
EPM7064STC44-6N | 21130 | Intel | EE PLD, 6NS, 64-CELL, CMOS, PQFP | 44-TQFP |
|
XCR3064XL-6VQ44C | 44999 | AMD | IC CPLD 64MC 5.5NS 44VQFP | 44-TQFP |
|

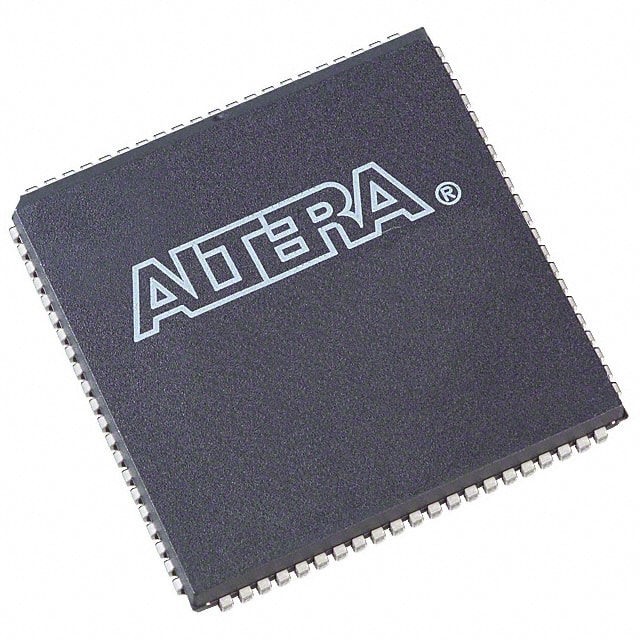

EPM7160ELC84-12 | 58775 | Intel | EE PLD, 12NS, 160-CELL, CMOS, PQ | 84-LCC (J-Lead) |
|
|
EPM1270GT144C5 | 32020 | Intel | IC CPLD 980MC 6.2NS 144TQFP | 144-LQFP |
|
|
XC95108-15TQ100C | 3957 | AMD | IC CPLD 108MC 15NS 100TQFP | 100-LQFP |
|
EPM7512AEFC256-7N | 36186 | Intel | IC CPLD 512MC 7.5NS 256FBGA | 256-BGA |
|
EPM7064STC100-6 | 57121 | Intel | EE PLD, 6NS, 64-CELL, CMOS, PQFP | 100-TQFP |

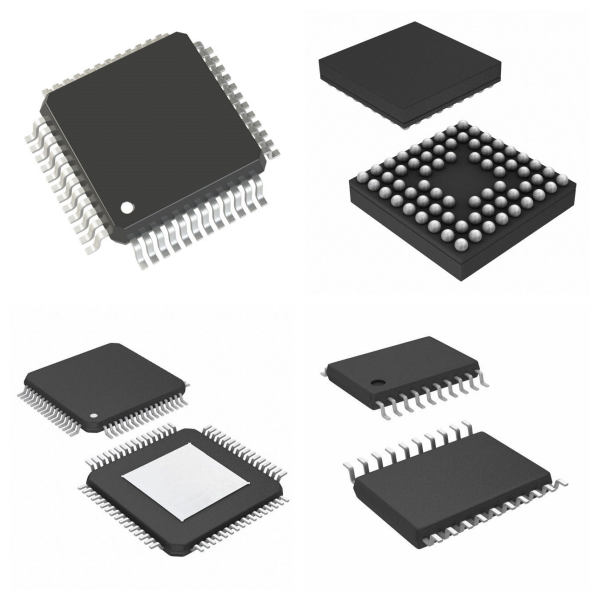

CPLDs (Complex Programmable Logic Devices)
1. What are Complex Programmable Logic Devices?
CPLD (Complex Programmable Logic Device) is a digital integrated circuit with user-defined logic functions. It was developed from the early PAL (Programmable Array Logic) and GAL (General Array Logic) and belongs to the category of large-scale integrated circuits. It was born in the mid-1980s to make up for the defect that early PLD devices could not realize complex circuits.
2. What are the Core Structural Features of Complex Programmable Logic Devices?
Logic Unit: It is composed of multiple programmable logic macrocells (Macro Cells). Each macrocell can process dozens of combinational logic inputs and is suitable for implementing complex combinational logic such as decoders.
Interconnection Resources: Logic units are connected through a central programmable interconnect matrix to provide flexible wiring capabilities.
I/O Resources: It integrates rich input/output pins and supports an efficient interface with external circuits.
3. What are the Technical Features of Complex Programmable Logic Devices?
Programming Technology: It adopts non-volatile storage technology based on EEPROM or Flash. After programming, data will not be lost when power is off, and it supports multiple updates in-system programming (ISP).
Performance Advantages: It has the characteristics of high-density integration, low power consumption, and high reliability, and is suitable for scenarios with high real-time requirements.
4. What are the Key Differences from FPGA?
|
Features |
CPLD |
FPGA |
|
Structural Basis |
Product term technology, macrocell structure |
Lookup table technology (LUT) |
|
Configuration Storage |
On-chip integrated EEPROM/Flash |
External configuration memory required |
|
Applicable Scenarios |
Complex combinational logic, control intensive |
Data-intensive, high-performance computing |
|
Granularity |
Large granularity (macrocell level) |
Medium granularity (LUT level) |
5. What are the Application Advantages of Complex Programmable Logic Devices?
Development Efficiency: Rapid design through schematics or hardware description language (HDL), shortening the development cycle and lowering the hardware experience threshold.
Cost-effectiveness: No tape-out cost, suitable for small and medium-scale production (such as less than 10,000 pieces) and prototype verification.
Flexibility: Repeatable programming to modify logic functions, widely used in communications, industrial control, automotive electronics, and other fields.
As a key component in digital system design, CPLD balances flexibility, integration, and cost, and is the preferred solution for the implementation of small and medium-scale logic circuits.
